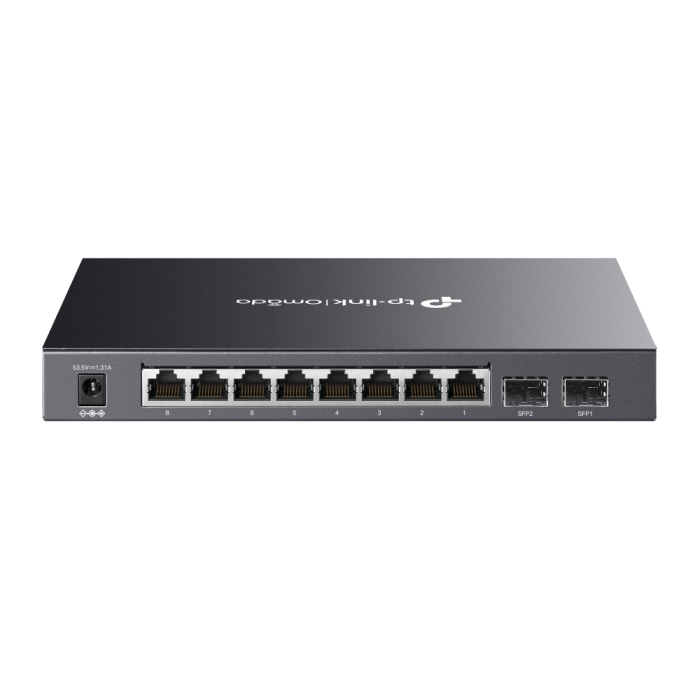

TP-LINK SG2210P Omada 8 PoE+ port, 2 Gigabit SFP slot smart switch

The SG2210P is a 10-port Gigabit switch with advanced L2/L2+ features designed for professional networks that require reliable PoE power, centralized management, and comprehensive security mechanisms. It is equipped with eight PoE+ RJ45 ports that support the 802.3af and 802.3at standards and provide a total of 61 W of PoE power, enabling the powering of devices such as IP cameras, access points, and VoIP phones. Two additional SFP slots enable optical connectivity and flexible network expansion. The switch operates without fans, ensuring quiet operation and a longer service life.
A switching capacity of 20 Gbps, a forwarding rate of 14.88 Mpps, an 8K MAC table, and a 4.1 Mbit cache enable stable data transfer even under heavy loads. Advanced QoS capabilities, such as 8 queues, SP and WRR support algorithms, and precise bandwidth control, enable efficient traffic management and priority applications. A comprehensive set of L2 features includes DHCP relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, and LLDP/LLDP-MED.
The switch includes powerful security features such as 802.1X, IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, Port Security, and DoS protection. Advanced IPv6 support, including static routing, ND, MLD Snooping, and IPv6 routing protocols, enables easy integration into modern networks. Management is possible via web GUI, CLI, SNMP, and Omada control platforms, enabling centralized configuration, monitoring, and control of the entire network infrastructure.
The SG2210P is suitable for demanding business environments where stability, security, control, and expandability are important, while offering simple desktop or wall mounting and reliable operation over a wide temperature range.

HARDWARE FEATURES
Interfaces:
• 8 × 10/100/1000 Mbps PoE+ RJ45 ports (Auto-Negotiation / Auto MDI/MDIX)
• 2 × 100/1000 Mbps SFP slots
Fans: fanless
Physical security lock: yes
Power supply: external power supply (output 53.5 V DC / 1.31 A)
PoE ports (RJ45):
• Standard: 802.3af/at
• Number of PoE ports: 8
• PoE power: 61 W
Dimensions (W × D × H): 209 × 126 × 26 mm
Installation: desktop/wall
Maximum power consumption: 77.8 W (at 110 V / 60 Hz, with 61 W PD load)
Maximum heat dissipation: 265.3 BTU/h (at 110 V / 60 Hz, with 61 W PD load)

PERFORMANCE
Switching capacity: 20 Gbps
Packet forwarding rate: 14.88 Mpps
MAC table: 8K
Packet cache: 4.1 Mbit
Jumbo frame: 9 KB

SOFTWARE FEATURES
Quality of Service (QoS)
802.1p CoS / DSCP priority
8 queues
Scheduling modes:
• SP (Strict Priority)
• WRR (Weighted Round Robin)
Queue weight settings
Bandwidth control (port/flow-based rate limit)
Smoother operation
Storm Control:
• Different modes (kbps / ratio)
• Broadcast / multicast / unknown-unicast control
L2 / L2+ functions
32 IP interfaces (IPv4/IPv6)
Static routing: 32 IPv4/IPv6 static routes
DHCP server
DHCP relay:
• DHCP Interface Relay
• DHCP VLAN Relay
DHCP L2 relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
DLDP (Device Link Detect Protocol)
802.1ab LLDP / LLDP-MED
L2 Multicast
511 IPv4/IPv6 multicast groups
IGMP Snooping
MVR (Multicast VLAN Registration)
Multicast filtering
Limited IP Multicast (256 profiles, 16 entries per profile)
Advanced features
(requires Omada controller)
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
VLAN
VLAN groups (up to 4K groups)
802.1Q VLAN tags
MAC VLAN (12 entries)
Protocol VLAN
GVRP
Voice VLAN
Access Control List (ACL)
Up to 230 ACL rules
Time-based ACL
MAC ACL / IP ACL / IPv6 ACL / Combined ACL
Policies: Mirroring, Redirect, Rate Limit, QoS Remark
Rule binding: Port Binding, VLAN Binding
Security
IP-MAC-Port Binding
AAA
802.1X:
• Port-based
• MAC-based
• PAP / EAP-MD5
• MAB
• Guest VLAN
• RADIUS authentication and accounting
IP/IPv6-MAC Binding (512 entries)
DHCP Snooping, DHCPv6 Snooping
ARP Inspection
ND Detection
IP Source Guard (253 entries)
IPv6 Source Guard (183 entries)
DoS Protection
Port Security (Static/Dynamic/Permanent), up to 64 MAC addresses per port
Storm Control (broadcast/multicast/unicast)
Port Isolation
Secure HTTPS management (SSLv3/TLS 1.2)
Secure CLI management via SSHv1/SSHv2
IP/Port/MAC-based access control
IPv6
IPv6 static routing and ACL
IPv6 dual-stack
IPv6 interface
MLD Snooping
Neighbor Discovery (ND)
MTU Discovery
ICMPv6
TCPv6 / UDPv6
IPv6 applications:
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet(v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• HTTP/HTTPS
• IPv6 TFTP
MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting/Authentication MIB
Remote Ping/Traceroute MIB (RFC2925)
TP-Link private MIBs
RMON MIB (rmon 1, 2, 3, 9)

MANAGEMENT
Omada App (with hardware, cloud, or software Omada control unit)
Centralized management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Zero-Touch Provisioning
Management features:
• Web GUI
• CLI via telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

OTHER
Certificates: CE, FCC, RoHS
Package contents: SG2210P, power supply, installation instructions, rubber feet
System requirements: Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, Mac OS, NetWare, UNIX, Linux
Environment:
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: –40 °C ~ 70 °C
• Operating humidity: 10% ~ 90% (non-condensing)
• Storage humidity: 5% ~ 90% (non-condensing)
