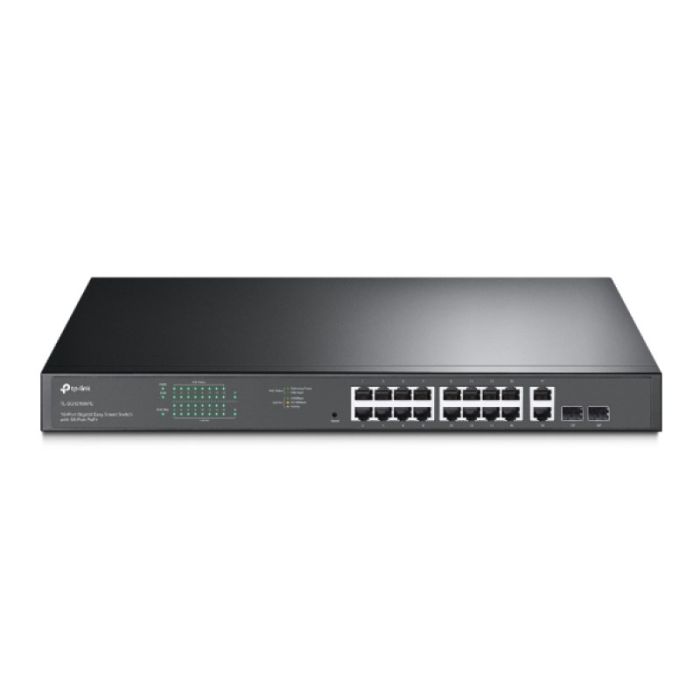

TP-LINK Switch 18-Port Gigabit Switch with 16-Port PoE+ Port

16× PoE+ Gigabit RJ45 ports, 2× Gigabit RJ45 ports without PoE, and 2× combined Gigabit SFP slots.
The PoE power budget is up to 250 W, making it ideal for small and medium-sized business surveillance systems.
Port Priority can ensure the quality of sensitive applications such as video monitors.
PoE Auto Recovery automatically reboots your failed or unresponsive PoE-powered devices.
Intelligent power management protects the switch from overload.
QoS ensures smooth traffic for delay-sensitive applications.
IGMP Snooping optimizes the delivery of multimedia traffic such as IPTV.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface • 16 × 10/100/1000 Mbps PoE+ RJ45 ports (auto-negotiation/auto MDI/MDIX)
• 2× 10/100/1000 Mbps RJ45 ports without PoE (auto-negotiation/auto MDI/MDIX)
• 2× combined Gigabit SFP ports
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6, or higher UTP cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-X MMF, SMF
Number of fans 2 fans
Physical security lock Yes
Power supply 100–240 V AC, 50/60 Hz
PoE+ ports (RJ45) • Standard: compliant with 802.3at/802.3af
• PoE+ ports: Ports 1–16
• Power supply: 250 W
Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Rack Mount
Maximum power consumption • 21.4 W (220/50Hz. without PD connected)
• 296.3 W (220/50 Hz with 250 W PD connected)
Maximum heat dissipation • 72.97 BTU/h (without PD connected)
• 1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching capacity 36 Gbps
Packet forwarding rate 26.78 Mbps
MAC address table 8K
Packet buffer 4.1 Mbit
Jumbo frame 10 KB
SOFTWARE FEATURES
Quality of Service • Port-based 802.1p/DSCP priority support
• Supports 4 priority queues
• Rate limiting
• Storm control
L2 Functions • IGMP Snooping V1/V2/V3
• Static link aggregation
• Port mirroring
• Cable diagnostics
• Loop prevention
• Auto PoE recovery
VLAN • Supports up to 32 VLANs simultaneously (from 4K VLAN IDs)
• MTU/Port/Tag VLAN
Management • Web GUI
• Easy Smart Configuration Utility
Store-and-Forward transmission method
OTHER
Certification CE, FCC, RoHS
Package Contents • TL-SG1218MPE
• Power cable
• Installation instructions
• Rack mount kit
• Rubber feet
Environment • Operating temperature: 0–50°C (32–122°F)
• Storage temperature: -40–70 °C (-40–158 °F)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH without condensation
