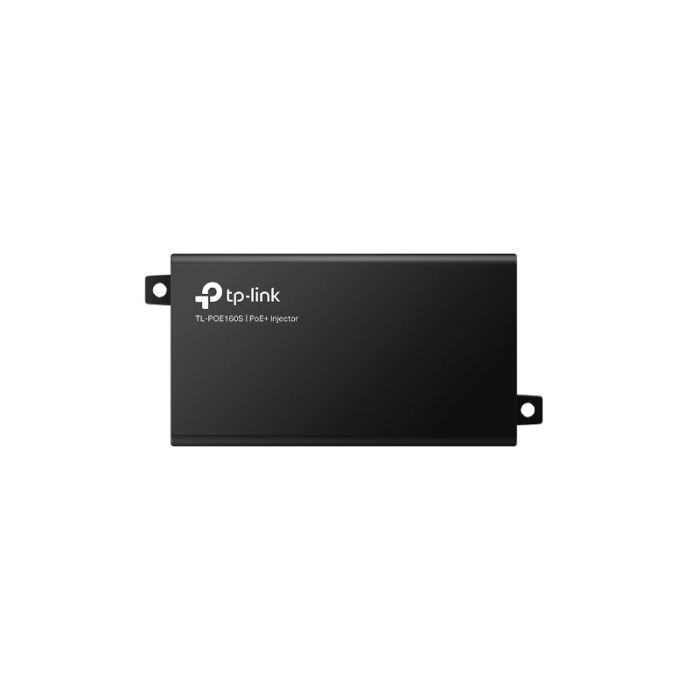

TP-LINK TL-POE160S PoE+ Injector

2 Gigabit ports provide faster transfer
Compliant with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by simultaneously transferring data and power over an Ethernet cable
Automatically determines and supplies the exact power required by the device
Wall-mount and desktop designs accommodate most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply

NETWORK
Standards and protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERAL
Certification FCC, CE, RoHS
Environment Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing
PACKAGE CONTENTS
Package Contents TL-POE160S PoE+ Injector
Installation instructions
Power cable
RJ45 cable
Wall mounting kits
HARDWARE FEATURES
Network media 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
1000BASE-T: Category 5, 5e, 6 UTP cable (max. 100 m)
Port 1 10/100/1000 Mbps RJ45 data input port
1 10/100/1000Mbps RJ45 power+data output
1 AC power jack
Input power consumption: 100-240 V, 50/60 Hz
Output: automatically determines the necessary power requirements (maximum 30 W)
Automatic basic function detection algorithm enables 802.3af/at PD power supply
Automatically determines the necessary power requirements
Supports wall mounting and desktop installation
Plug and play
LED indicator ON: normal power supply
OFF: No power
Dimensions (W x D x H) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
