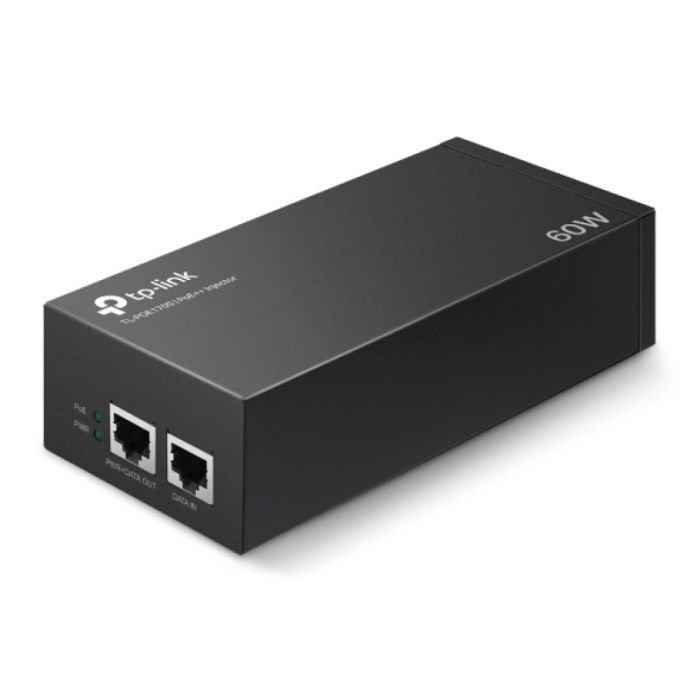

TP-LINK TL-POE170S PoE++ Injector

2 Gigabit ports provide faster transfer
Compliant with IEEE802.3af/at/bt* standards, supplies up to 60 W
Reduces infrastructure costs by simultaneously transferring data and power over an Ethernet cable
Automatically determines and delivers the exact power required by the device
Wall-mount and desktop designs accommodate most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply
Durable metal housing

NETWORK
Standards and protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
GENERAL
Certification FCC, CE, RoHS
Operating ambient temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH without condensation
Material Metal housing
PACKAGE CONTENTS
Package Contents PoE++ Injector TL-POE170S
Installation instructions
Power cable
RJ45 cable
HARDWARE FEATURES
Network media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
1000BASE-T: Category 5, 5e, 6 UTP cable (max. 100 m)
Port 1 10/100/1000 Mbps RJ45 data input port
1 10/100/1000Mbps RJ45 power+data output
1 AC power jack
Input power consumption: 100-240 V, 50/60 Hz, 1.6 A
Output: Automatically determines the required power (maximum 60 W)
Automatic detection algorithm for basic function enables power supply with 802.3af/at/bt* PD
Automatically determines the necessary power requirements
Supports wall mounting and desktop installation
Plug and play
Dimensions (W x D x H) 6.1*2.8*1.7 in (155*70*42 mm)
