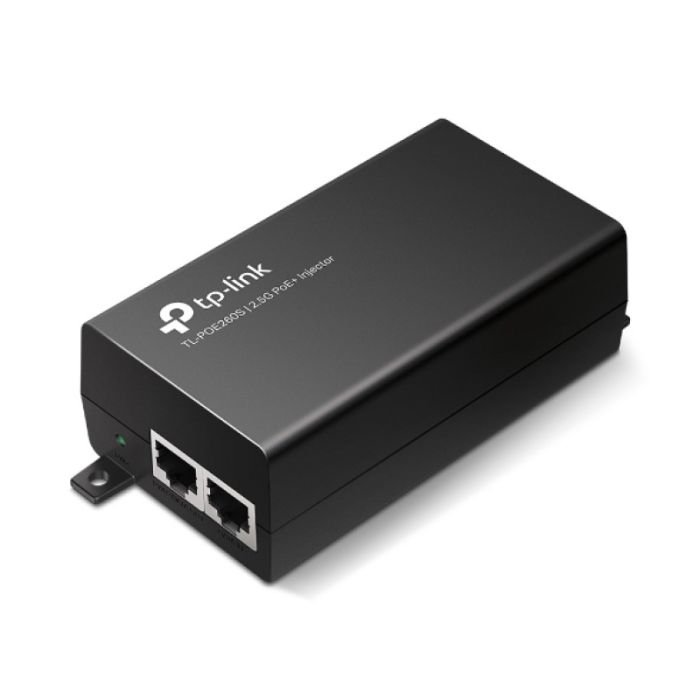

TP-LINK TL-POE260S 2.5G PoE+ Injector

2*2.5 Gbps ports provide faster transfer
Compliant with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by simultaneously transferring data and power over an Ethernet cable
Automatically determines and supplies the exact power required by the device
Wall-mount and desktop designs accommodate most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply

NETWORK
Standards and protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at
GENERAL
Certification FCC, CE, RoHS
Environment Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing
PACKAGE CONTENTS
Package Contents • 2.5 Gbps PoE+ injector TL-POE260S
• Installation guide
• Power cable
• RJ45 cable
• Wall mounting kits
HARDWARE FEATURES
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6 UTP cable (max. 100 m)
• 2.5GBASE-T: Category 5e or higher UTP cable (max. 100 m)
Ports • 1 10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps RJ45 data input port
• 1 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 power and data output port
• 1 AC power socket
Input power consumption: 100-240 V, 50/60 Hz
Output: automatically determines the necessary power requirements (maximum 30 W)
Basic function • Automatic detection algorithm enables 802.3af/at PD power supply
• Automatically determines the necessary power requirements
• Supports wall mounting and desktop installation
• Plug and play
LED indicator ON: normal power supply
OFF: No power
Dimensions (W x D x H) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
