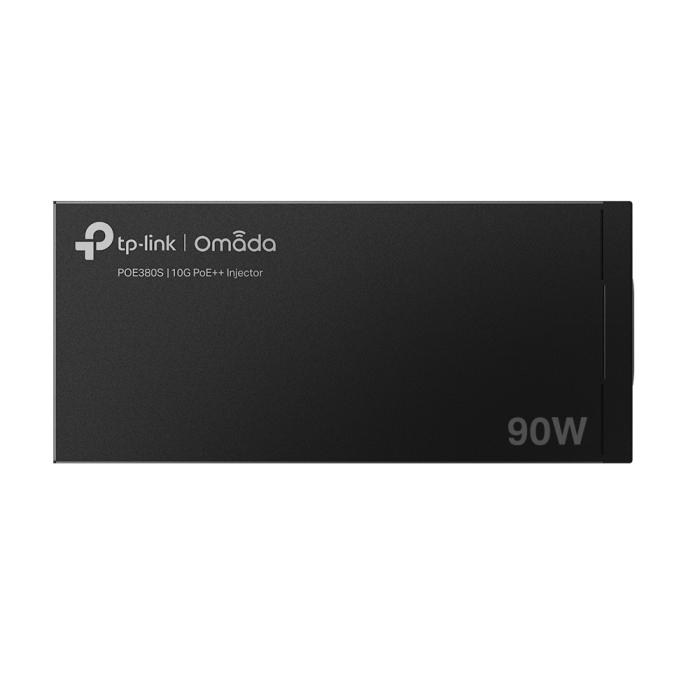

TP-LINK TL-POE380S 10G PoE++ Injector

2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports provide faster transfer
Compliant with IEEE802.3af/at/bt standards, supplies up to 90 W
Reduces infrastructure costs by simultaneously transferring data and power over an Ethernet cable
Automatically determines and supplies the exact power required by the device
Wall-mount and desktop designs accommodate most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply
Durable metal housing

HARDWARE FEATURES
Standards and protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6 UTP cable (max. 100 m)
Ports • 1 × 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data input port
• 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data output (max. 90 W)
• 1× AC power socket
Power consumption • Input: 100–240 V, 50/60 Hz, 1.6 A
• Output: automatically determines the necessary power requirements (max. 90 W)
Basic function • Automatic detection algorithm enables power supply with 802.3af/at/bt* PD
• Automatically determines the necessary power requirements
• Wall and desktop mounting
• Plug-and-play
LED power supply / PoE
Dimensions (W x D x H) 6.1*2.8*1.7 in (155*70*42 mm)
OTHER
Certification FCC, CE, RoHS
Package contents • POE380S
• Power cable
• Installation instructions
Environment
• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Operating humidity: 10% to 90% RH non-condensing
• Storage humidity: 5% to 90% RH without condensation
