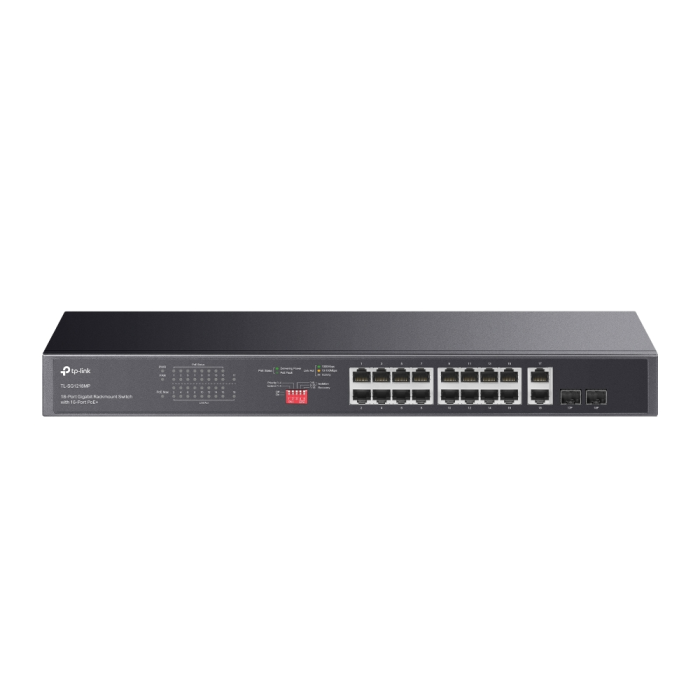

TP-LINK TL-SG1218MP V5.0 18-port Gigabit switch with 16-port PoE+ port

The TL-SG1218MP V5.0 is a powerful 18-port Gigabit switch designed for networks that require high reliability, scalability, and PoE+ power delivery. The switch includes 16 PoE+ Gigabit RJ45 ports with a total PoE budget of 250 W, allowing direct powering of IP cameras, access points, VoIP phones, and other 802.3af/at devices. Two additional Gigabit RJ45 ports and two combo SFP slots allow for flexible network upgrades with fiber optic connections.
A switching capacity of 36 Gbps and packet forwarding at 26.78 Mpps ensure stable data transfer even in busy networks. Advanced features such as 802.1p/DSCP QoS, automatic MAC address learning, Flow Control, and PoE Auto Recovery enable efficient management and high availability. Extend Mode on ports 1–4 enables data transfer and PoE power supply up to 250 m, while Priority Mode and Isolation Mode enable traffic optimization and greater security.
The switch is equipped with two fans for reliable cooling and allows rack-mount installation. It is compatible with various types of UTP/STP cables and supports jumbo frames up to 10 KB. The device is suitable for professional networks in offices, surveillance systems, or infrastructure deployments where high PoE budgets and stable gigabit connectivity are required.

HARDWARE FEATURES
Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p
Interfaces:
16 × PoE+ gigabit RJ45 ports
2 × Gigabit non-PoE RJ45 ports
2 × combo gigabit SFP slots
Network media:
10BASE-T: UTP Cat 3/4/5, up to 100 m; STP 100 Ω
100BASE-TX: UTP Cat 5/5e, up to 100 m; STP 100 Ω
1000BASE-T: UTP Cat 5/5e/6+, up to 100 m; STP 100 Ω
1000BASE-X: MMF, SMF

COOLING AND SAFETY
Fans: 2
Physical security lock: yes

POWER
Input power: 100–240 VAC, 50/60 Hz
PoE ports: ports 1–16
PoE standard: 802.3af / 802.3at
PoE budget: 250 W

POWER CONSUMPTION
19 W (without PD devices, 220 V / 50 Hz)
293.34 W (with 250 W PD, 220 V / 50 Hz)

HEAT RESISTANCE
64.79 BTU/h (without PD)
1000.29 BTU/h (with 250 W PD)

DIMENSIONS
440 × 180 × 44 mm (17.3 × 7.1 × 1.73 in)

MOUNT
Rack-mount design

PERFORMANCE
Switching capacity: 36 Gbps
Packet forwarding rate: 26.78 Mpps
MAC table: 8K
Packet buffer: 4.1 Mbit
Jumbo frame: 10 KB

ADVANCED FEATURES
Support for IEEE 802.3af/at PD devices
802.1p / DSCP QoS
Automatic MAC address learning and aging
IEEE 802.3x Flow Control (full-duplex)
Backpressure (half-duplex)
Extend Mode (ports 1–4, up to 250 m; speed limited to 10 Mbps**)
Priority Mode (ports 1–4)
Isolation Mode (ports 1–8 / 9–16)
PoE Auto Recovery (ports 1–16)

CERTIFICATIONS
CE, FCC, RoHS

Package contents: TL-SG1218MP, Installation Guide, Power Cord, Rackmount Kit, Rubber Feet
Environmental Specifications
Operating temperature: 0–50 °C
Storage temperature: –40–70 °C
Operating humidity: 10–90% RH (non-condensing)
Storage humidity: 5–90% RH (non-condensing)
