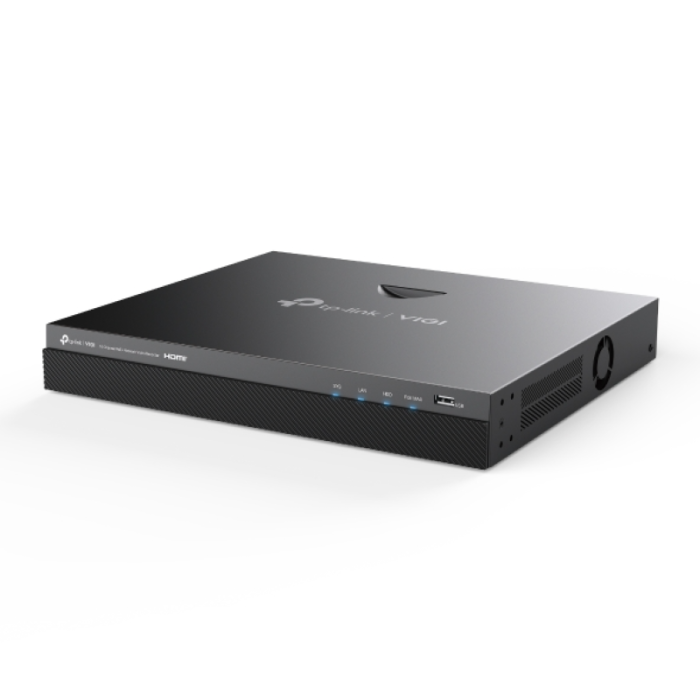

TP-LINK VIGI 16-channel PoE+ network video recorder 24/7

4K HDMI video output and 16 MP decoding capability: Sharp image resolution up to 8 MP and 8-ch@2MP decoding capability allow you to enjoy live viewing and multi-channel playback at the same time.
140 W PoE budget: 16 × 802.3af/at-compliant PoE+ ports with a total power of 140 W.
16-channel simultaneous playback*: Replay the source from up to 16 cameras simultaneously, increase the playback speed, and search for events in the video timeline for easy review of footage.
H.265+: Compresses video size without sacrificing video quality, easing network load and saving disk space.
ONVIF ensures compatibility: Easily add VIGI and other brands of IPCs to build a powerful and diverse network thanks to barrier-free compatibility.
Auto-initialization for quick configuration: Just click "Auto-initialization" to set the basic parameters of the IPC and hard disk, significantly reducing your configuration time.
24/7 continuous recording: Store up to 32 TB of footage (1048 days of storage***) from connected cameras to secure your data for quick and convenient access.
Two-way audio: with voice intercom support, scare off potential thieves or intruders wherever you are.
Remote monitoring: the dedicated VIGI app and client enable remote monitoring for ease and convenience.

VIDEO AND AUDIO
IP video input 16 channels
Incoming bandwidth 80 Mbps
Outgoing bandwidth 60 Mbps
Output resolution HDMI 1 channel, resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA output resolution 1 channel, resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video output mode HDMI/VGA Simultaneous output
Multi-view display 1/4/6/8/9/16
DECODING
Audio compression G.711A/G.711U/G.726
Video compression H.265+/H.265/H.264+/H.264
Recording resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
16-channel synchronous playback
Capacity • 25fps:
2-channel @ 8 MP, 4-channel @ 4 MP, 8-channel @ 2 MP

• 30 frames per second:
4 channels at 3 MP, 2 channels at 5 MP
RECORDING
Recording mode • Manual recording
• Scheduled recording
• Motion detection recording
Playback mode • Instant playback
• Scheduled playback
• Marker playback
• Event playback
Backup mode • Regular backup
• Video backup
Playback function • Play
• Pause
• Stop
• Fast forward
• Fast rewind
• Frame-by-frame playback
• Full screen mode
• Video recording
• Export clip
• Digital zoom
• Lock recording
• Turn sound on/off
NETWORK
UPnP (Plug and Play) protocol, NTP (Network Timing)
Mobile phone access Android, iOS
Web browser Chrome (57+), Firefox (52+), Edge (91+)
ONVIF, CGI interoperability
EXTERNAL INTERFACE
Network interface 1, RJ-45 10/100/1000 Mbps auto-adaptive Ethernet interface
USB interface: 1 front USB 2.0 port, 1 rear USB 2.0 port
Audio interface 1, Audio input; 1, Audio output
Alarm In/Out N/A
Serial interface N/A
Power supply 1× DC Jack
Reset button 1
Speaker N/A
eSATA 1
HDMI 1
VGA 1
HARD DISK
SATA 2 SATA interfaces
Capacity Up to 16 TB capacity for each hard drive
POE
Compliant with 802.3at/af standard
Interface 1-16, RJ-45 10/100 Mbps auto-negotiating Ethernet interface
PoE budget 140 W Available for all PoE+ ports, max. 30 W per port
ALARM
General alarm • Motion detection
• Video tampering
• Line crossing detection
• Intrusion detection
• Region entry detection
• Region exit detection
• Detection of abandoned/removed objects
• Vehicle detection
• Human detection
• Smart frame
Alarm for irregularities • Video loss
• No connection and IP conflict
• Disk exception
• Login exception
• Fan exception
Alarm connection • Recording
• White light alarm
• Buzzer
• Log
• Audible alarm
GENERAL
Storage temperature -40–70 °C
Storage humidity 10%~90% RH without condensation
Package contents • VIGI network video recorder
• Charger
• Power cables
• HDD power cables
• HDD data cables
• Mounting accessories
• Mouse
• Quick installation guide
Operating temperature • NVR: -10–55 °C
• Power supply: 0–40 °C
Operating humidity 10%~90% RH without condensation
Dimensions (W × D × H) 330 × 285 × 45 mm
Net weight 2.1 kg
Gross weight 4.1 kg
Power supply 53.5 V DC/3.37 A
Power consumption • 6.2 W (without disk)
• 40 W (with disk)
Certificates CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
