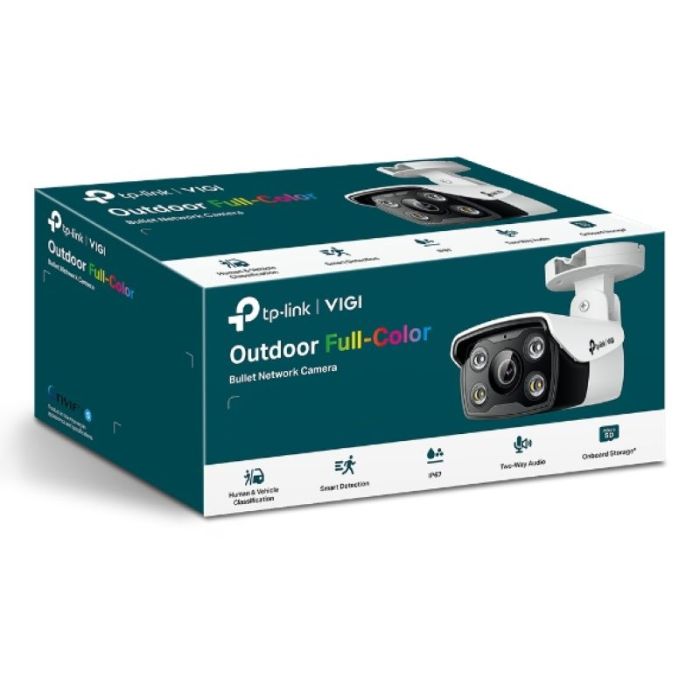

TP-LINK VIGI 3MP Outdoor Full-Color Bullet Network Camera C330 4mm

Super high resolution 3 MP: The camera is equipped with 3 million pixels – more than enough pixels to capture some of the more discreet details.
24-hour full color: Get 24-hour color details, even in dark conditions, with a large aperture lens, high-sensitivity sensor, and included auxiliary lights.
People and vehicle classification: Distinguish people and vehicles from other objects so you receive more accurate event notifications.
Smart detection: Receive notifications and review footage when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/leaves objects.
Built-in microphone: Features a built-in microphone to record everything happening within 15 ft of the camera.
Waterproof IP67: Reliable IP67 for stable outdoor operation.
H.265+: Without using additional bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
Smart video enhancement: VIGI's professional technologies process video to greatly enhance its quality, which is crucial for your monitoring, including smart IR, WDR, 3D DNR, and night vision.
PoE/12V DC: Two types of power supply not only provide you with more convenience, but also make wiring extremely easy.
Flexible management: Take complete control of your security through four management modes: web user interface, NVR user interface, VIGI app, and VIGI security manager.

CAMERA
1/2.8" progressive scan CMOS image sensor
2.8 mm/4 mm/6 mm lens
Day/night switching Day/night/auto/schedule switching
Digital noise reduction 3D DNR
WDR DWDR
Weather resistance rating IP67
IR working distance 30 m
Shutter speed 1/3 to 1/10000 s
Aperture 2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
Lens mount M12
Angle of view 2.8 mm: 107.5°/57.2°/128.7° (H/V/D)
4 mm: 89.1°/45.1°/106.9° (V/V/G)
6 mm: 55.1°/30.2°/64° (V/V/D)
Slow shutter Yes
Minimum illumination: 0.005 Lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
ONVIF API
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client app, VIGI security manager, VIGI NVR, web
Web browser Google Chrome® 57 and later
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check
Network storage NAS (NFS, SMB/CIFS)
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Mounting accessories
Dimensions (H x W x D) 174 × 78 × 70 mm
Material Plastic
General features: dual stream, mirror, privacy masks, password reset via email, HTTP listening
Net weight 0.26 kg
Gross weight 0.4 kg
Power consumption 12 V DC: max. 5.4 W
PoE: Class 0
Power supply 12V DC ± 5%, 5.5 mm coaxial power plug
PoE (802.3af/at, class 0)
IP67 protection
Product dimensions (L x W x H) 174 × 78 × 71 mm
Certifications CE/BSMI/VCCI/ONVIF
INTERFACES
Network interface 1 RJ45 10/100M auto-negotiating Ethernet port
Alarm N/A
Reset button Not available
Power supply DC Power Port
Button -
Video output -
Onboard storage -
Built-in microphone Yes
Built-in speaker N/A
Sound not available
ALARM AND EVENT MANAGEMENT
Smart event classification of people and vehicles, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Detection of movement in the base event, detection of video tampering, exception (illegal login)
Alarm connection White light flashing, Message push
Connection method N/A
Output notification Push message
VIDEO/IMAGE
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
Frame rate and resolution Main stream:
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Substream:
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. resolution 3 MP (2304 × 1296)
Video Streaming Main stream
Substream
Image Settings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable with client software, rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Video bit rate 64 Kbps to 4 Mbps
Day/night switching Day/night/Auto/Schedule
SMART FUNCTION SET
Smart classification of events involving people and vehicles, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Basic event motion detection, camera tampering detection, exception (illegal login)
Connection mode trigger notification: ONVIF, HTTPS
Region of interest 1 Region
AUDIO
Audio communication N/A
Audio input not available
Audio output N/A
Audio compression N/A
Audio sampling rate N/A
Ambient noise filtering N/A
Audio bit rate Not available
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator on/off control Automatic/Scheduled/Always on/Always off
LENS
Fixed focal length lens type
Focal length 2.8/4/6 mm
Aperture F1.6
FOV 2.8 mm:
Horizontal angle of view: 107.5°, vertical angle of view: 57.2°, diagonal angle of view: 128.7°
4 mm:
Horizontal angle of view: 89.1°, vertical angle of view: 45.1°, diagonal angle of view: 106.9°
6 mm:
Horizontal angle of view: 55.1°, vertical angle of view: 30.2°, diagonal angle of view: 64°
M12 lens attachment
DORI distance 2.8 mm:
Detection: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognition: 10 m (34 ft)
Identification: 5 m (17 ft)
4 mm:
Detection: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identification: 7 m (23 ft)
6 mm:
Detection: 100 m (327 ft)
Observe: 41 m (136 ft)
Recognize: 20 m (65 ft)
Identification: 10 m (33 ft)
ANGLE SETTINGS (MANUAL)
Pan range: -90° to 90°
Tilt: -90° to 90°

max. Resolution 2304 × 1296
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Bit rate control
CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported H.264+ main stream
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

Imagesettings Mirror, Brightness, Contrast, Saturation, Sharpness, Illumination, WDR,
White balance, Infrared light exposure prevention, HLC, adjustable via client software, rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
