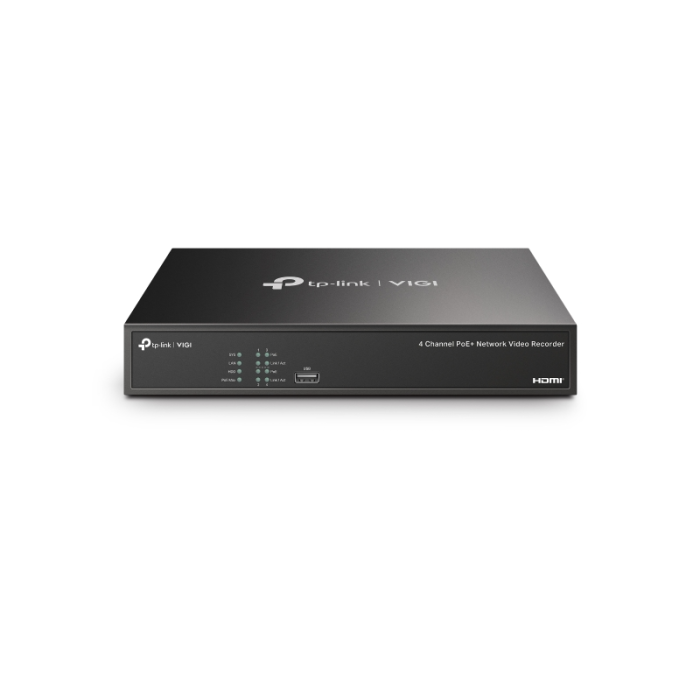

TP-LINK VIGI 4-Channel PoE+ Network Video Recorder 24/7

4-channel live view and 4K HDMI video output
4× 10/100 Mbps PoE+ ports with 53 W PoE budget
2-channel at 8 MP/ 4-channel at 4 MP decoding capability
4-channel synchronous playback
80 Mb/s incoming bandwidth and 60 Mb/s outgoing bandwidth
1× SATA interface and 1 to 10 TB HDD support
H.265+ compression technology
Simultaneous HDMI and VGA output
Remote monitoring

VIDEO AND AUDIO
4-channel IP video input
Incoming bandwidth 80 Mbps
Outgoing bandwidth 60 Mbps
Output resolution HDMI 1 channel, resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA output resolution 1 channel, resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video output mode HDMI/VGA Simultaneous output
Multi-view display 1/4
DECODING
Audio compression G.711A/G.711U/G.726
Video compression H.265+/H.265/H.264+/H.264
Recording resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
4-channel synchronous playback†
Capacity • 25fps:
2 channels at 8MP, 4 channels at 4MP

30 frames per second:
4-channel at 4 MP, 3-channel at 5 MP
RECORDING
Recording mode • Manual recording
• Scheduled recording
• Motion detection recording
Playback mode • Instant playback
• Scheduled playback
• Marker playback
• Event playback
Backup mode • Regular backup
• Video backup
Playback function • Play
• Pause
• Stop
• Fast forward
• Fast rewind
• Frame-by-frame playback
• Full screen mode
• Video recording
• Export clip
• Digital zoom
• Lock recording
• Turn sound on/off
NETWORK
UPnP (Plug and Play) protocol, NTP (Network Timing)
Mobile phone access Android, iOS
Web browser Chrome (57+), Firefox (52+), Edge (91+)
ONVIF, CGI interoperability
EXTERNAL INTERFACE
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
USB interface: 1 front USB 2.0 port, 1 rear USB 2.0 port
Audio interface 1, Audio input; 1, Audio output
Alarm In/Out N/A
Serial interface N/A
Power supply 1× DC Jack
Reset button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DRIVE
SATA interface 1 SATA
Capacity up to 10 TB for each hard drive
POE
Compliant with 802.3at/af standard
Interface 1-4, RJ-45 10/100 Mbps auto-negotiating Ethernet interface
PoE budget 53 W△ Available for all PoE+ ports, max. 30 W per port
ALARM
General alarm • Motion detection
• Video tampering
• Line crossing detection
• Intrusion detection
• Region entry detection
• Region exit detection
• Detection of abandoned/removed objects
• Vehicle detection
• Human detection
• Smart frame
Alarm for irregularities • Video loss
• No connection and IP conflict
• Disk exception
• Login exception
Alarm connection • Recording
• White light alarm
• Buzzer
• Log
• Audible alarm
GENERAL
Storage temperature -40–70 °C
Storage humidity 10%~90% RH without condensation
Package contents • VIGI network video recorder
• Charger
• Power cables
• Rubber feet
• Mouse
• Quick installation guide
Operating temperature • NVR: -10–55 °C
• Power supply: 0–40 °C
Operating humidity 10%~90% RH without condensation
Dimensions (W × D × H) 246.2 × 148.2 × 45 mm
Power supply 53.5 V DC/1.31 A
Power consumption • 4.25 W (without disk)
• 13.10 W (with disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
