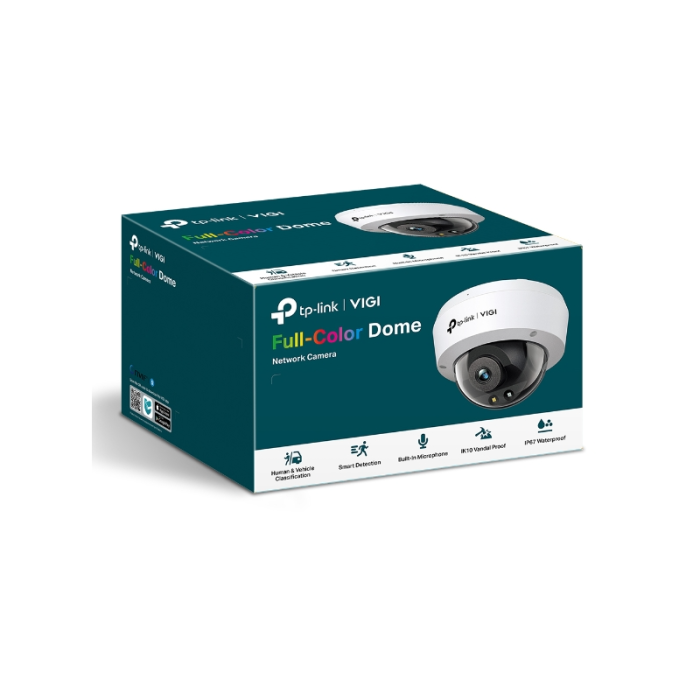

TP-LINK VIGI 4MP Full-Color Dome Network Camera (up to 2560 × 1440 H.265+ 30fps)

Super high resolution with 4 million pixels: The camera has a resolution of 4 million pixels—more than enough pixels to detect some more discreet details.
24-hour full color: Get 24-hour color detail, even in dark conditions, with a large aperture lens, high-sensitivity sensor, and included auxiliary lights.
People and vehicle classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart detection: Receive notifications and review sources when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/leaves objects.
Built-in microphone: Features a built-in microphone to record everything happening within a 15 ft radius of the camera.
IK10 Vandal-Resistant & IP67 Waterproof: With a vandal-resistant rugged housing and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environments with rain and dust for constant security anywhere, anytime.
H.265+: Without using extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
Smart video enhancement: VIGI's professional technologies process video to greatly improve its quality, which is crucial for your monitoring, including smart IR, WDR, 3D DNR, and night vision.
PoE/12V DC: Two types of power supply not only provide you with more convenience, but also make wiring extremely easy.
Flexible management and storage: Take complete control of your security through four management methods: web user interface, NVR user interface, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as built-in storage with an SD card slot (up to 256 GB).

CAMERA
1/3" progressive scan CMOS image sensor
Day/night switching unified/scheduled/automatic
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination: 0.005 Lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
LENS
Fixed focal length lens type
Focal length 2.8 mm/4 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
FOV 2.8 mm:
Horizontal angle of view: 95.7°, vertical angle of view: 51.7°, diagonal angle of view: 113.0°
4 mm:
Horizontal field of view: 79.7°, vertical field of view: 42.9°, diagonal field of view: 93.9°
M12 lens mount
DORI Distance 2.8 mm:
Detection: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognition: 13 m (42 ft)
Identification: 6 m (21 ft)
4 mm:
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identification: 8 m (26 ft)
ANGLE SETTING (MANUAL)
Pan range: 0° to 355°
Tilt: 0° to 75°

IR LED ILLUMINATORQuantity: 1
Range: 30 m
Wavelength: 850 nm
White LED Quantity: 1
Range: 30 m
Illuminator on/off control Automatic/Scheduled/Always on/Always off
VIDEO
max. Resolution 2560 × 1440
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

Imagesettings Mirror, Brightness, Contrast, Saturation, Sharpness, Illumination, WDR,
White balance, Infrared light exposure prevention, HLC, adjustable via client software, rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setup Yes
AUDIO
Audio communication N/A
Audio input Yes
Audio output N/A
Audio compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
ONVIF API
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client application, VIGI security manager, web user interface
Web browser Google Chrome® 57 and above
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check

Smart classification ofpeople and vehicles, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Detection of movement in a basic event, detection of video tampering, exception (illegal login)
Alarm connection White light flashing, Message push
Connection method N/A
Output notification Push message

INTERFACESNetwork interface 1 RJ45 10/100M auto-adaptive Ethernet port, PoE
Alarm N/A
Reset button Yes
Power supply DC Power Port
Built-in storage, built-in memory card slot, MicroSD card support, up to 256 GB
Built-in microphone Yes; records everything happening within a 15 ft radius of the camera
Built-in speaker N/A
No audio available
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Mounting accessories
Material Plastic
Net weight 0.28 kg
Gross weight 0.46 kg
Power supply 12V DC ± 5%, max. 5.4 W, 5.5 mm coaxial power plug
PoE: 802.3af/at, class 0, max. 6 W
Protection IP67, IK10
Product dimensions (L x W x H) 115 × 86 × 115 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
