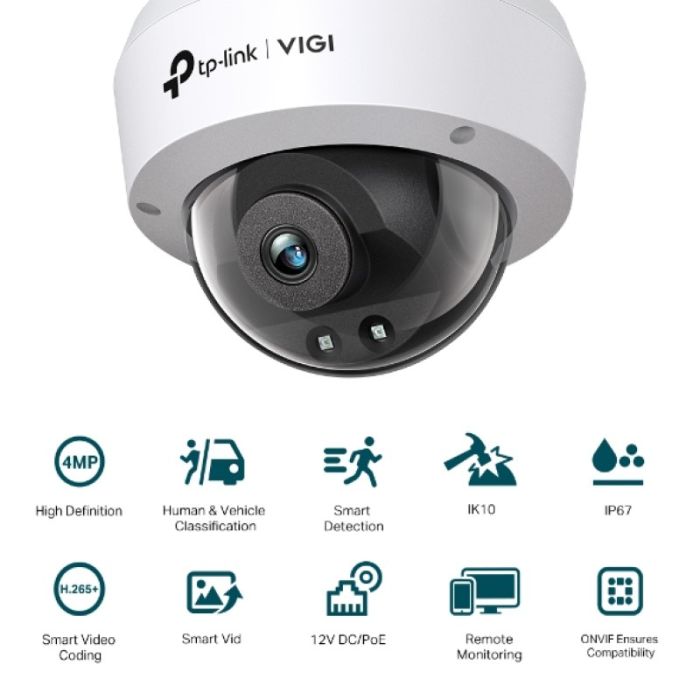

TP-LINK VIGI 4MP IR Dome Network Camera (up to 2560 × 1440 H.265+ 30fps)

Super high resolution with 4 million pixels: The VIGI C240I camera has a resolution of 4 million pixels—more than enough pixels to capture some of the more subtle details.
People and vehicle classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart detection: Receive notifications and check sources when someone crosses a boundary, enters an area you have set, obstructs the camera, or removes/leaves objects.
IK10 Vandal-Resistant & IP67 Waterproof: With a vandal-resistant rugged housing and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environments with rain and dust for constant security anywhere, anytime.
H.265+: Without using extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
Smart video enhancement: VIGI's professional technologies process video to greatly improve its quality, which is crucial for your monitoring, including smart IR, WDR, 3D DNR, and night vision.
PoE/12V DC: Two types of power supply not only provide you with more convenience, but also make wiring extremely easy.
2.8/4 mm lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, the C240I has two different lens types to better suit your security needs.
Flexible management: Take complete control of your security with four management modes: web user interface, NVR user interface, VIGI app, and VIGI Security Manager.

CAMERA
1/3" CMOS image sensor with progressive scan
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination: 0.1 lux; 0 lux with IR
Day/night mechanism IR Cut Filter
Day/night switching unified/scheduled/automatic
Lens 2.8 mm/4 mm
Aperture 2.8 mm: F2.2
4 mm: F2.2
Lens mount M12
Angle of view 2.8 mm: 88.8°/48.9°/106.5° (H/V/D)
4 mm: 75.1°/41.5°/88.7° (V/V/D)
IR working distance 30 m
Digital noise reduction 3D DNR
WDR DWDR
Weather resistance rating IP67
LENS
Fixed focal length lens type
Focal length 2.8 mm/4 mm
Aperture 2.8 mm: F2.2
4 mm: F2.2
FOV 2.8 mm:
Horizontal angle of view: 88.8°, vertical angle of view: 48.9°, diagonal angle of view: 106.5°
4 mm:
Horizontal angle of view: 75.1°, vertical angle of view: 41.5°, diagonal angle of view: 88.7°
M12 lens mount
DORI Distance 2.8 mm:
Detection: 60 m (197 ft)
Note: 25 m (82 ft)
Recognition: 12 m (39 ft)
Identification: 6 m (20 ft)
4 mm:
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identification: 8 m (26 ft)
VIDEO
max. Resolution 2560 × 1440
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Substream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

IR LED illuminatorQuantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator on/off control Automatic/Scheduled/Always on/Always off

ANGLE SETTINGS (MANUAL)Pan range: 0° to 355
Tilt: 0° to 75°
Image settings Mirror, Brightness, Contrast, Saturation, Sharpness, Illumination, WDR,
White Balance, IR Cut, HLC, adjustable via client software, Rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
AUDIO
Audio communication N/A
Audio input not available
Audio output N/A
Audio compression N/A
Audio sampling rate N/A
Ambient noise filtering N/A
Audio bit rate Not available
NETWORK
Security Password protection, HTTPS encryption, IP address filter, Authenticity check
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client app, VIGI security manager, VIGI NVR, web
Web browser Google Chrome® 57 and above
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
ONVIF Yes

INTERFACESNetwork interface 1 RJ45 10/100M auto-negotiating Ethernet port
Alarm N/A
Reset button Not available
Power DC Power Port
Button -
Video output -
Built-in storage N/A
Built-in microphone N/A
Built-in speaker N/A
Audio not available

Classification ofpeople and vehicles in a smart event, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Motion detection in basic event, video tampering detection, exception (illegal login)
Alarm Linkage Message Push
Linkage Method N/A
Output notification Push message

Package contents VIGI network camera
Quick Start Guide
Waterproof cable connectors
Mounting accessories
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Storage humidity 95% or less (non-condensing)
Operating humidity 95% or less (no condensation)
Dimensions (H × W × D) 115 × 115 × 86 mm
Material Plastic
General features: dual stream, mirror, privacy masks, password reset via email, HTTP listening
Net weight 0.27 kg
Gross weight 0.45 kg
Power consumption 12V DC: Max 5W
PoE: Class 0
Power supply 12V DC ± 5%, 5.5 mm coaxial power plug
PoE (802.3af/at, class 0)
Vandal-resistant IK10
IP67, IK10 protection
Product dimensions (L x W x H) 115 × 86 × 115 mm
Certifications CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
Frame rate and resolution Main stream:
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Subframe:
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Max. resolution 4 MP (2560 × 1440)
Video Streaming Main stream
Substream
Image Settings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable via client software, rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Video Bit Rate 64 Kbps to 4 Mbps
Day/night switching Day/night/auto/schedule

SMART FUNCTIONSSmart classification of events involving people and vehicles, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Basic event motion detection, camera tampering detection, exception (illegal login)
Connection mode trigger notification: ONVIF, HTTPS
Region of interest 1 Region
