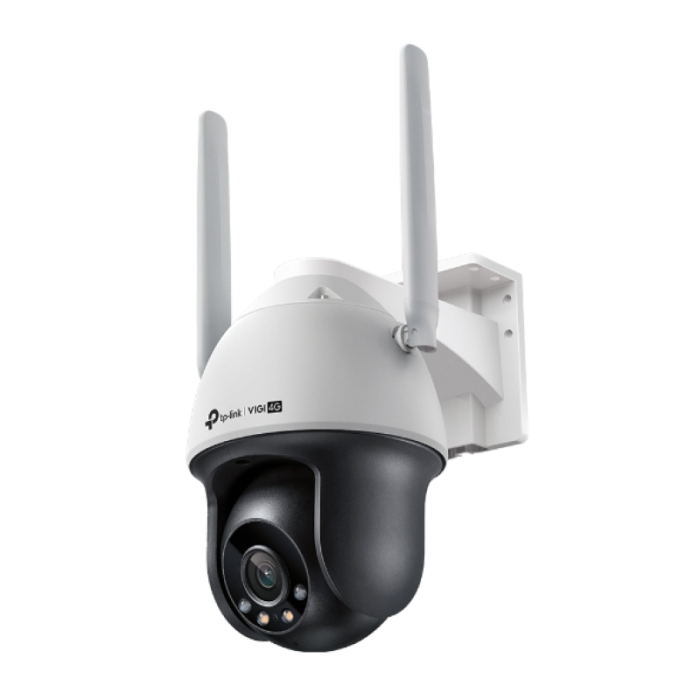

TP-LINK VIGI 4MP Outdoor Full-Color 4G/LTE Pan Tilt Network Camera (up to 2560X1440 H.265+ 30fps)

Super high resolution with 4 million pixels: The camera has a resolution of 4 million pixels – more than enough pixels to detect some more discreet details.
24-hour full color: Experience clear, vivid 24-hour monitoring, even in complete darkness.
4G mobile network: Enjoy hassle-free installation and easy monitoring in places where the internet is not available.
360° surveillance: Cover every corner and eliminate blind spots.
People and vehicle classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart detection: Actively detects unusual events such as intrusion and line crossing, and sends you notifications immediately.
Automatic tracking: Automatically tracks people or vehicles of interest to you, providing continuous and longer video.
Active defense: Immediately alert potential intruders with sound and light when unusual events occur.
Two-way audio: With voice intercom support, you can conduct two-way conversations while viewing the source from anywhere.
H.265+: Compresses video size without sacrificing video quality, easing network load and saving disk space.
Waterproof IP66: Reliable IP66 for stable outdoor operation.
Remote management: Take complete control of your security anytime, anywhere with the VIGI app or PC client.
On-board storage: Supports up to 512 GB of on-board storage (SD card slot)

CAMERA
1/3.06" CMOS image sensor with progressive scan
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination 0.005 lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
Day/night switching unified/scheduled/automatic
LENS
Fixed focal length lens type
Focal length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens mount M12*0.5
DORI distance detection: 80 m (262 ft)
Note: 33 m (109 ft)
Recognition: 16 m (52 ft)
Identification: 8 m (26 ft)
PTZ
Rotation/tilt range: Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt speed • Movement speed:
Adjustable from 8° to 44°/s; Default speed: 44°/s

• Tilt speed:
Adjustable from 8° to 44°/s, preset speed 44°/s
Manual control speed Adjustable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off memory Yes;
Automatic restoration of previous PT and lens position after power failure
Park Action Yes;
Preset; Patrol scan
3D positioning Yes
ANGLE SETTING (MANUAL)
Range • Pan: 0° to 348°
• Tilt: 0° to 120°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 30 m
• Wavelength: 850 nm
White LED • Quantity: 2
• Range: 30 m
Lighting control On/Off Automatic/Scheduled/Always on/Always off
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Package contents • VIGI network camera
• Quick start guide
• Waterproof cable connectors
• Mounting accessories
• Charger
Material Plastic
Net weight 0.69 kg
Gross weight 1.16 kg
Power supply 12V DC/1A, 5.5 mm coaxial power plug
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz dipole omnidirectional antenna

• Gain:
Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
IP66 protection
Product dimensions (L x W x H) 120 × 182 × 201 mm (without antennas)
Certificates CE, RCM, BSMI, RoHS, NCC
VIDEO
Max. resolution 2560 X 1440
Main stream • Frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe • Frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression • Main stream: H.265+/H.265/H.264+/H.264
• Substream: H.265/H.264
H.264 Main Profile/High Profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate • Main stream: 256 Kbps to 3 Mbps
• Substream: 64 Kbps to 512 Kbps
Image settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White balance
• Prevent excessive exposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
AUDIO
Audio communication Two-way audio
Audio input Yes
Audio output Yes
Audio compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous live viewing 2 main streams and 2 sub-streams
VIGI client application, VIGI security manager, web user interface
Web browser • Google Chrome® 57 and later
• Firefox® 52 and later
• Safari® 11 and later
• Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check
4G
Standard LTE-TDD/LTE-FDD/WCDMA
SIM Type Nano SIM
Category 4
Frequency • LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT
Smart Event • Classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Detection of people
• Detection of vehicles
• Abnormal sound detection
Basic event • Movement detection
• Video tampering detection
• Exception (illegal login)
Connection to alarm • Video recording to memory card
• Push notifications
• Audible alert
• Flashing white light
Connection method N/A
Output notification Push notification
INTERFACES
Network interface 1 RJ45 10/100M auto-negotiating Ethernet port
Alarm N/A
Reset button Yes
Power supply DC Power Port
Built-in storage, built-in memory card slot, MicroSD card support, up to 512 GB
Built-in Nano-SIM card slot Yes
Built-in microphone Yes; records everything happening within 15 ft of the camera
Built-in speaker Yes
Audio not available
