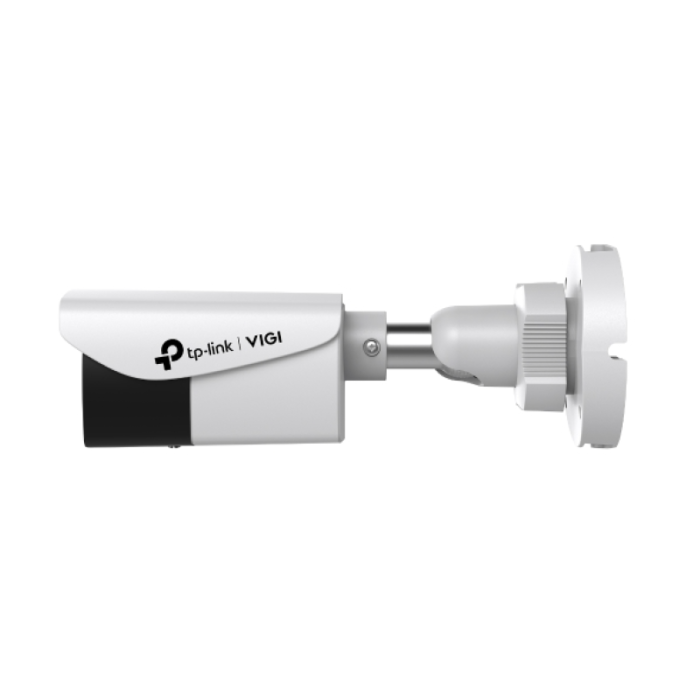

TP-LINK VIGI 4MP Outdoor Full-Color Bullet Network Camera (up to 2560 × 1440 H.265+ 30fps)

4MP super high resolution and 24-hour full color
Classification of people and vehicles
Smart detection
Smart video enhancement technology
Active defense and two-way audio
IP67 waterproof
H.265+ compression technology

CAMERA
1/3" CMOS image sensor with progressive scan
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination 0.005 lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
Day/night switching uniform/scheduled/automatic
LENS
Fixed focal length lens type
Focal length 2.8 mm/4 mm/6 mm
Aperture 2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
FOV • 2.8 mm:
Horizontal viewing angle: 102.5°, vertical viewing angle: 55.2°, diagonal viewing angle: 122.1°
• 4 mm:
Horizontal field of view: 76.3°, vertical field of view: 40.6°, diagonal field of view: 90.2°
• 6 mm:
Horizontal viewing angle: 50.6°, vertical viewing angle: 27.8°, diagonal viewing angle: 58.8°
M12 lens attachment
DORI Distance • 2.8 mm
Detection: 64 m (209 ft)
Note: 27 m (87 ft)
Recognition: 13 m (42 ft)
Identification: 6 m (21 ft)
• 4 mm
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identification: 8 m (26 ft)
• 6 mm
Detection: 128 m (420 ft)
Observe: 53 m (175 ft)
Recognize: 26 m (84 ft)
Identification: 13 m (42 ft)
ANGLE SETTING (MANUAL)
Range • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

IR LED LIGHT• Quantity: 2
• Range: 30 m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30 m
Illuminator on/off control Automatic/Scheduled/Always on/Always off
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (non-condensing)
Package contents • VIGI network camera
• Quick start guide
• Waterproof cable connectors
• Mounting accessories
Material Plastic
Net weight 0.34 kg
Gross weight 0.50 kg
Power supply • 12V DC ± 5%, max. 7 W, 5.5 mm coaxial power plug
• PoE: 802.3af/at, class 0, max. 8 W
Protection IP67 Waterproof
Product dimensions (L x W x H) 78.5 × 188.0 × 71.5 mm (3.09 × 7.40 × 2.81 in)
Certifications CE, NTRA, VCCI, BSMI, FCC
VIDEO
, max. Resolution 2560 X 1440
Main stream • Frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Sub-frame • Frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
640x480, 352x288, 320x240
• Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression • Main stream: H.265+/H.265/H.264+/H.264
• Substream: H.265/H.264
H.264 High Profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate • Main stream: 256 Kbps to 4 Mbps
• Substream: 64 Kbps to 512 Kbps

Image settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevent excessive exposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes

Audiocommunication Two-way audio
Audio input Yes
Audio output Yes
Audio Compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
NETWORK
Protocol
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client application, VIGI security manager, web user interface
Web browser • Google Chrome® 57 and later
• Firefox® 52 and later
• Safari® 11 and later
• Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check

ALARM AND EVENT MANAGEMENTSmart Event • Classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Abnormal sound detection
• Detection of people
• Detection of vehicles
Basic event • Motion detection
• Detection of video tampering
• Exception (illegal login)
Connection to alarm • Video recording to memory card
• Push notifications
• Audible alert
• Flashing white light
Connection method N/A
Output notification Push notification

INTERFACESNetwork interface 1 RJ45 10/100M auto-negotiating Ethernet port, PoE
Alarm N/A
Reset button Yes
Power supply DC Power Port
Built-in storage, built-in memory card slot, MicroSD card support, up to 512 GB**
Built-in microphone Yes; records everything happening within a 15 ft radius of the camera
Built-in speaker Yes
Audio not available
