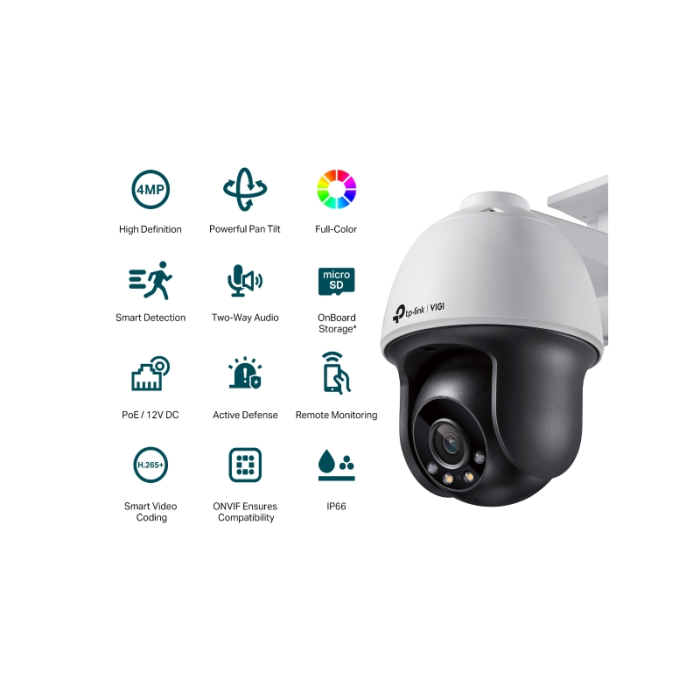

TP-LINK VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera (up to 2560X1440 H.265+ 30fps)

Super high resolution with 4 million pixels: The camera has a resolution of 4 million pixels—more than enough pixels to detect some more discreet details.
24-hour full color: Get 24-hour color detail, even in dark conditions, with a large aperture lens, high-sensitivity sensor, and included auxiliary lights.
Powerful Pan Tilt: Custom patrol paths and auto-tracking provide more intelligent options for monitoring key areas and improving security on your property.
People and Vehicle Classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check sources when someone crosses a boundary, enters an area you have set, obstructs the camera, or removes/leaves objects.
Automatic tracking: Continue to track specific moving people or vehicles with Pan Tilt cameras that intelligently analyze the image.
Active defense: Immediately alert potential intruders with sound and light in the event of unusual events.
Two-way audio: intelligently detects activity, notifies you immediately, and automatically responds with smart detection and two-way audio.
H.265+: Without using additional bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
Smart video enhancement: VIGI's professional technologies process video to greatly improve its quality, which is crucial for your monitoring, including smart IR, WDR, 3D DNR, and night vision.
Waterproof IP66: Reliable IP66 for stable outdoor operation.
PoE/12V DC: Two types of power supply not only provide you with more convenience, but also make wiring extremely easy.
Flexible management and storage: Take complete control of your security through four management methods: web user interface, NVR user interface, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as built-in storage with an SD card slot (up to 256 GB).

CAMERA
Image sensor 1/3" progressive scan CMOS
Fixed focal length lens (4 mm) Day/night switching: unified/scheduled/automatic
Day/night switching unified/scheduled/automatic
Digital noise reduction 3D DNR
WDR DWDR
Weather resistance rating IP66
IR working distance 30 m
Pan/Tilt range Pan: 0° to 350°, Tilt: 0° to 120°
Shutter speed 1/3 to 1/10000 s
Aperture 4 mm: F1.6
Lens mount M12
Illumination distance 30 m
Angle of view (4 mm) Horizontal field of view: 79°, Vertical field of view: 43°, Diagonal field of view: 93°
Digital zoom Yes
Slow shutter Yes
Minimum illumination 0 lux with IR/white light
Day/night mechanism IR Cut Filter
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
ONVIF API
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client application, VIGI security manager, VIGI NVR, web
Web browser Google Chrome® 57 and above
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check
Network storage NAS (NFS, SMB/CIFS)
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Weight 195 g
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Mounting accessories (screws, drywall anchors, Allen key)
Dimensions (H x W x D) 120 × 172 × 198 mm
Material Plastic
General features: dual stream, mirror, privacy masks, password reset via email, HTTP listening
Power requirements 12V DC ± 5%, 5.5 mm coaxial power plug
PoE (802.3af/at, class 0)
Power consumption 12V DC: Max 14W
PoE: Class 4
Power supply 12V DC ± 5%, 5.5 mm coaxial power plug
PoE (802.3af/at, Class 4)
IP66 protection
Product dimensions (L x W x H) 120 × 172 × 198 mm
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
INTERFACES
Network interface 1 RJ45 10/100M auto-negotiating Ethernet port
Audio input Built-in microphone
Audio output Built-in speaker
Alarm N/A
Reset button Yes
Power supply DC Power Port
Button Reset button
Micro SD card slot
Built-in storage, built-in memory card slot, MicroSD card support, up to 256 GB
Built-in microphone Yes
Built-in speaker Yes
No sound available
ALARM AND EVENT MANAGEMENT
Smart classification of people and vehicles, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Detection of movement in the base event, detection of video tampering, exception (illegal login)
Connection to alarm, video recording to memory card, message sending, audible warning, flashing white light
Connection method N/A
Output notification Push message
VIDEO/IMAGE
Video compression Main stream: H.265+/H.265/H.264+//H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264
H.265 Main Profile
Supported H.265+ main stream
Frame rate and resolution Main stream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Substream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Max. resolution 2560 X 1440
Video Streaming Main stream
Substream
Image Settings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable with client software
Image Enhancement BLC/3D DNR/Infrared Over-exposure Prevention
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps
Day/night switching Day/night/auto/schedule switching
Privacy mask Up to 4 masks
SMART FEATURE SET
Smart event intrusion detection, line crossing detection, human detection
Basic event motion detection, camera tampering detection, exception (illegal login)
Connection mode trigger notification: ONVIF, HTTPS
Region of interest 1 Region
Alarm connection, video recording to memory card, message sending, audible alarm, flashing white light
Output notification Push message

AUDIO
Audio communication Two-way audio
Audio input Yes
Audio output Yes
Audio compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
PTZ
Pan/tilt range: Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt speed Movement speed:
Adjustable from 1° to 55°/s; Default speed: 55°/s
Tilt speed:
Adjustable from 1° to 40°/s, preset speed 40°/s
Manual control speed Adjustable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off memory Yes
Park Action Yes
3D positioning preset, Patrol
ILLUMINATOR
IR LED Quantity: 2
Range: 30 m
Wavelength: 850nm
White LED Quantity: 2
Range: 30 m
Illuminator on/off control Automatic/Scheduled/Always on/Always off
LENS
Fixed focal length lens type
Focal length 4 mm
Aperture F1.6
FOV 4 mm:
Horizontal angle of view: 79°, vertical angle of view: 43°, diagonal angle of view: 93°
Lens mount M12
DORI Distance 4 mm:
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognition: 16 m (52 ft)
Identification: 8 m (26 ft)
ANGLE SETTING (MANUAL)
Pan range: 0° to 348°
Tilt: 0° to 120°
VIDEO
Max. Resolution 2560 X 1440
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

Imagesettings Mirror, Brightness, Contrast, Saturation, Sharpness, Illumination, WDR,
White balance, Infrared light exposure prevention, HLC, adjustable via client software, rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
