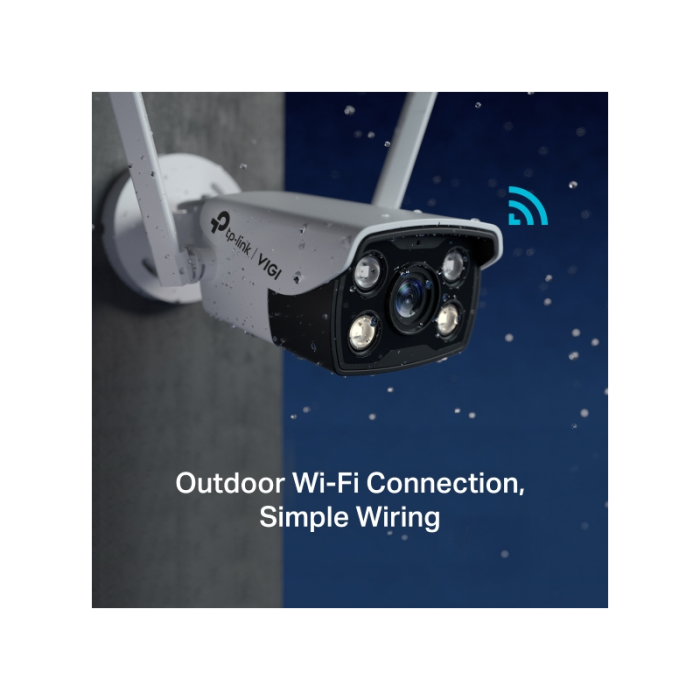

TP-LINK VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera (up to 2560 × 1440 H.265+ 30fps)

High resolution with 4 million pixels: the camera is equipped with 4 million pixels – more than enough pixels to detect some more discreet details.
24-hour full color: Get 24-hour color details, even in dark conditions, via a highly sensitive sensor and included LED spotlights.
Wireless outdoor connection: Easy and quick installation with Wi-Fi signals.
Waterproof: Reliable IP66 rating for stable outdoor operation.
Smart detection (human detection, motion detection, intrusion detection, line crossing, video tampering): Receive notifications and check sources when someone crosses the border, enters the area you have set, or obstructs the camera.
H.265+: Without using extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
VIGI app: Manage your security right from the palm of your hand with the VIGI app.

CAMERA
Image sensor 1/3" CMOS with progressive scan
Lens Fixed focal length lens (4 mm)
Day/night switching Day/night/auto/schedule switching
Digital noise reduction 3D DNR
WDR DWDR
Weather resistance rating IP66
IR working distance 30 m
Shutter speed 1/3 to 1/10000 s
Aperture 4 mm: F1.6
Lens mount M12
Illumination distance 30 m
Angle of view (4 mm) Horizontal field of view: 79°, Vertical field of view: 43°, Diagonal field of view: 93°
Slow shutter Yes
Minimum illumination 0 lux with IR/white light
Day/night mechanism IR Cut Filter
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless speed 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mb/s (802.11n)
Wireless security WPA/WPA2-PSK
ONVIF Yes
ONVIF API
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client app, VIGI security manager, VIGI NVR, web
Web browser Google Chrome® 57 and above
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check
Network storage NAS (NFS, SMB/CIFS)
Frequency 2.4 GHz
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Weight 195 g
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Charger
Mounting accessories (screws, drywall anchors, Allen key)
Dimensions (H x W x D) 80 × 70.6 × 173.4 mm
Material Plastic
General features: dual stream, mirror, privacy masks, password reset via email, HTTP listening
Power requirements 12V DC ± 5%, 5.5 mm coaxial power plug
Net weight 0.31 kg
Gross weight 0.6 kg
Power consumption 12V DC: Max 7W
Power supply 12V DC ± 5%, 5.5 mm coaxial power plug
Number of antennas: 2
Type: Soldered dipole omnidirectional antenna 2.4 GHz
Gain: 2.0 dBi
IP66 protection
Product dimensions (L x W x H) 80 × 173 × 71 mm (without antennas)
Certificates CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
INTERFACES
Network interface 1 RJ45 10/100M auto-negotiating Ethernet port
Audio input Built-in microphone
Audio output Built-in speaker
Alarm N/A
Reset button Yes
Power supply DC Power Port
Button Reset button
Micro SD card slot
Built-in storage, built-in memory card slot, MicroSD card support, up to 256 GB
Built-in microphone Yes; records everything happening within a 15 ft radius of the camera
Built-in speaker Yes
No audio available
ALARM AND EVENT MANAGEMENT
Intrusion detection in smart event area, line crossing detection, people detection
Motion detection on primary event, video tampering detection, exception (illegal login)
Alarm connection, video recording to memory card, message sending, audible alert, flashing white light
Connection method N/A
Output notification Push message
WIRELESS
Standards IEEE 802.11b/g/n
WiFi channels EU: 1-13
US: 1-11
Frequency 2.4 GHz
High wireless transmission power
Automatic wireless channel N/A
Wireless statistics N/A
Mornitor throughput N/A
Auto radio bandwidth: Not available
20M: Yes
40M: Yes
Wireless speed 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Wireless security PWPA/WPA2-PSK
Wireless mode AP, AP Client
VIDEO/IMAGE
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
Frame rate and resolution Main stream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Substream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
Substream
Image Settings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable with client software
Image Enhancement BLC/3D DNR/Infrared Over-exposure Prevention
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps
SMART FEATURES
Smart event intrusion detection, line crossing detection, human detection
Basic event motion detection, camera tampering detection, exception (illegal login)
Connection mode trigger notification: ONVIF, HTTPS
Region of interest 1 Region
AUDIO
Audio communication Two-way audio
Audio input Yes
Audio output Yes
Audio compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30 m
Illuminator on/off control Automatic/Scheduled/Always on/Always off
LENS
Fixed focal length lens type
Focal length 4 mm
Aperture F1.6
FOV Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens mount M12
DORI distance detection: 80 m (262 ft)
Note: 33 m (109 ft)
Recognition: 16 m (52 ft)
Identification: 8 m (26 ft)
ANGLE SETTING (MANUAL)
Pan range: -90° to 90°,
Tilt: -90° to 90°
VIDEO
Max. Resolution 2560 X 1440
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

Imagesettings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable via client software, rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
