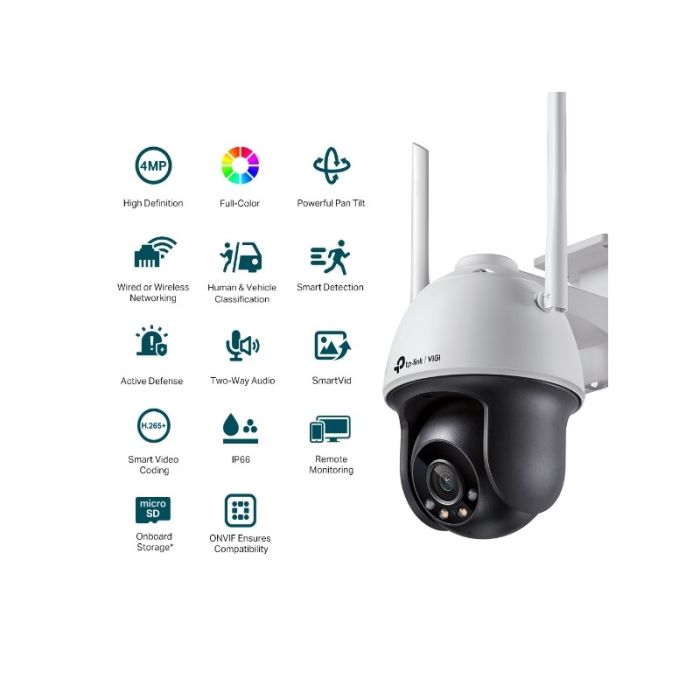

TP-LINK VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera (up to 2560X1440 H.265+ 30fps)

Super high resolution with 4 million pixels: The camera has a resolution of 4 million pixels—more than enough pixels to detect some more discreet details.
24-hour full color: Get 24-hour color detail, even in dark conditions, with a large aperture lens, high-sensitivity sensor, and included auxiliary lights.
Powerful Pan Tilt: Customized patrol paths and auto-tracking provide more intelligent options for monitoring key areas and improving security on your property.
Wireless outdoor connection: Easy and quick installation with Wi-Fi signals.
People and vehicle classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart detection: Receive notifications and check sources when someone crosses a boundary, enters an area you have set, obstructs a camera, or removes/leaves objects.
Automatic tracking: Continue to track specific moving people or vehicles with Pan Tilt cameras that intelligently analyze the image.
Active defense: Immediately alert potential intruders with sound and light in the event of unusual events.
Two-way audio: intelligently detects activity, notifies you immediately, and automatically responds with smart detection and two-way audio.
H.265+: Without using additional bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
Smart video enhancement: VIGI's professional technologies process video to greatly enhance its quality, which is critical to your monitoring, including smart IR, WDR, 3D DNR, and night vision.
Waterproof IP66: Reliable IP66 for stable outdoor operation.
Flexible management and storage: Take complete control of your security through four management methods: web user interface, NVR user interface, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as built-in storage with an SD card slot (up to 256 GB)

CAMERA
1/3" CMOS image sensor with progressive scan
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination: 0.005 Lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
Day/night switching unified/scheduled/automatic
Lens Fixed focal length lens (4 mm)
Aperture 4 mm: F1.6
Lens mount M12
Angle of view (4 mm) Horizontal field of view: 80°, Vertical field of view: 43.2°, Diagonal field of view: 94.2
Digital noise reduction 3D DNR
WDR DWDR
Weather resistance rating IP66
LENS
Fixed focal length lens type
Focal length 4 mm
Aperture F1.6
FOV 4 mm:
Horizontal angle of view: 79°, vertical angle of view: 43°, diagonal angle of view: 93°
Lens mount M12
DORI Distance 4 mm:
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognition: 16 m (52 ft)
Identification: 8 m (26 ft)
PTZ
Pan/tilt range: Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt speed Movement speed:
Adjustable from 1° to 55°/s; Preset speed: 55°/s
Tilt speed:
Adjustable from 1° to 40°/s, preset speed 40°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off memory Yes
Park Action Yes
3D positioning preset, patrol
VIDEO
Max. resolution 2560 X 1440
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

IR LED illuminatorQuantity: 2
Range: 30 m
Wavelength: 850nm
White LED Quantity: 2
Range: 30 m
Illuminator on/off control Automatic/Scheduled/Always on/Always off
ANGLE SETTINGS (MANUAL)
Pan range: 0° to 348°
Tilt: 0° to 120°

Imagesettings Mirror, Brightness, Contrast, Saturation, Sharpness, Illumination, WDR,
White Balance, IR Cut Filter, HLC, adjustable via client software, Rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes

Audiocommunication Two-way audio
Audio input Yes
Audio output Yes
Audio Compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
NETWORK
Security Password protection, HTTPS encryption, IP address filter, Authentication check
Network storage NAS (NFS, SMB/CIFS)
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Frequency 2.4 GHz
API Open Network Video Interface (Profile S)
Simultaneous live viewing of up to 6 channels
VIGI client application, VIGI security manager, VIGI NVR, web
Web browser Google Chrome® 57 and above
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
ONVIF Yes

INTERFACESNetwork interface 1 RJ45 10/100M auto-negotiating Ethernet port
Audio output N/A
Alarm N/A
Reset button Yes
Power supply DC Power Port
Button Reset button
Built-in storage, built-in memory card slot, MicroSD card support,
Up to 256 GB
Built-in microphone Yes
Built-in speaker Yes
No audio available

ALARM AND EVENT MANAGEMENTClassification of people and vehicles in a smart event, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Motion detection in basic event, video tampering detection, exception (illegal login)
Connection to alarm, video recording to memory card, message sending, audible warning, flashing white light
Connection method N/A
Output notification Push message
GENERAL
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Charger
Mounting accessories
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Storage humidity 95% or less (non-condensing)
Operating humidity 95% or less (non-condensing)
Material Plastic
General features: dual SIM, mirror, privacy masks, password reset via email, HTTP listening
Net weight 0.62 kg
Gross weight 1.21 kg
Power consumption Max 15.3 W
Power supply 12V DC; 1.5 A
Number of antennas: 2
Type: Welded dipole omnidirectional antenna 2.4 GHz
Gain: 2.0 dBi
Protection IP66
Product dimensions (L x W x H) 120 × 172 × 198 mm (without antennas)
Certificates CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
WIRELESS
Standards IEEE 802.11b/g/n
WiFi channels 1-13
Frequency 2.4 GHz
High wireless transmission power
Automatic wireless channel N/A
Wireless statistics N/A
Mornitor throughput N/A
Auto radio bandwidth: Not available
20M: Yes
40M: Yes
Wireless speed 11 Mbps (802.11b)
54 Mbps (802.11g)
150/300 Mbps (802.11n)
Wireless security PWPA/WPA2-PSK
Wireless mode AP, AP Client
VIDEO/IMAGE
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported H.264+ main stream
H.265 Main Profile
Supported H.265+ main stream
Frame rate and resolution Main stream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Substream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Max. resolution 2560 X 1440
Video Streaming Main stream
Substream
Image Settings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable with client software
Image Enhancement BLC/3D DNR/Infrared Over-exposure Prevention
Video Bit Rate Main Stream: 256 Kbps to 3 Mbps
Substream: 64 Kbps to 512 Kbps
Day/night switching Day/night/auto/schedule switching
Privacy mask Up to 4 masks

SMART FEATURESSmart event classification of people and vehicles, intrusion detection
Detection, line crossing detection, people
Detection, Area entry detection, Area exit
Detection, Abandoned object detection, Object
Detection of removal, vehicle detection
Basic event motion detection, video tampering detection
Exception (illegal login)
Connection method N/A
Connection to alarm, video recording to memory card, sending messages,
Audible warning, white light flashing
Output notification Push message
