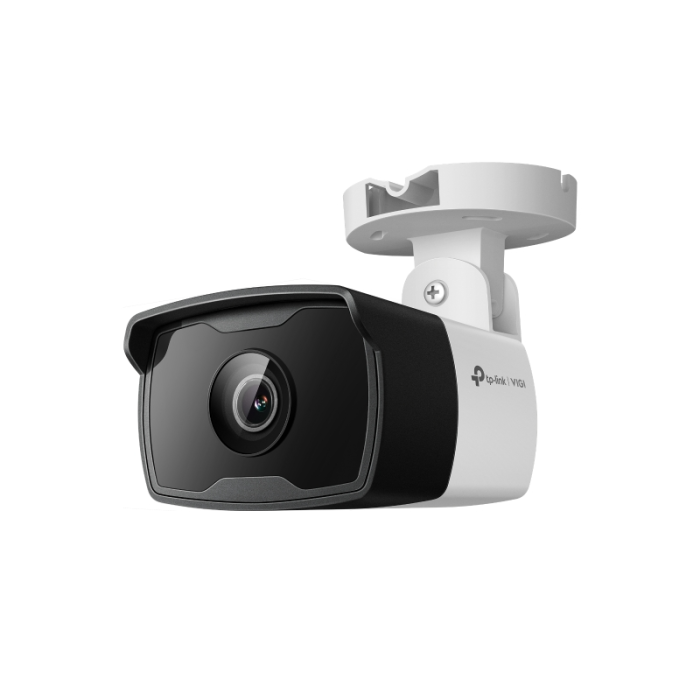

TP-LINK VIGI 4MP Outdoor IR Bullet Network Camera (up to 2560 × 1440 H.265+ 30fps)

Super high resolution with 4 million pixels: The VIGI C340I camera has a resolution of 4 million pixels – more than enough pixels to capture some of the more subtle details.
People and vehicle classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart detection: Receive notifications and check sources when someone crosses a boundary, enters an area you have set, obstructs the camera, or removes/leaves objects.
Smart video enhancement: VIGI's professional technologies process video to greatly enhance its quality, which is crucial for your monitoring, including smart IR, WDR, 3D DNR, and night vision.
H.265+: Without using additional bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network load, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor operation.
PoE/12V DC: Two types of power supply not only provide you with more convenience, but also make wiring extremely easy.
2.8/4/6 mm lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, the C340I has three different lens types to better suit your security needs.
Flexible management: Take complete control of your security with four management modes: web user interface, NVR user interface, VIGI app, and VIGI Security Manager.

CAMERA
1/3" CMOS image sensor with progressive scan
Day/night switching unified/scheduled/automatic
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination: 0.01 lux; 0 lux with IR
Day/night mechanism IR Cut Filter
LENS
Fixed focal length lens type
Focal length 2.8 mm/4 mm/6 mm
Aperture 2.8 mm: F2. 2
4 mm: F2.2
6 mm: F2.0
FOV 2.8 mm:
Horizontal angle of view: 88.8°, vertical angle of view: 48.9°, diagonal angle of view: 106.5°
4 mm:
Horizontal angle of view: 75.1°, vertical angle of view: 41.5°, diagonal angle of view: 88.7°
6 mm:
Horizontal angle of view: 47.7°, vertical angle of view: 26.5°, diagonal angle of view: 56°
M12 lens attachment
DORI Distance 2.8 mm:
Detection: 60 m (197 ft)
Note: 25 m (82 ft)
Recognition: 12 m (39 ft)
Identification: 6 m (20 ft)
4 mm:
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identification: 8 m (26 ft)
6 mm:
Detection: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identification: 12 m (39 ft)
ANGLE SETTINGS (MANUAL)
Pan range: -90° to 90°
Tilt: -90° to 90°

IR LED ILLUMINATORQuantity: 2
Range: 30 m
Wavelength: 850nm
White LED N/A
Illuminator on/off control Automatic/Scheduled/Always on/Always off

VIDEOMax. resolution 2560 × 1440
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Subframe rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265 Main Profile
Supported H.265+ main stream
Video bit rate Main stream: 256 Kbps to 4 Mbps
Substream: 64 Kbps to 512 Kbps

Imagesettings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, adjustable via client software, rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
AUDIO
Audio communication N/A
Audio input not available
Audio output N/A
Audio compression N/A
Audio sampling rate N/A
Ambient noise filtering N/A
Audio bit rate Not available
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
ONVIF API
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client application, VIGI security manager, web user interface
Web browser Google Chrome® 57 and above
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check

Smart classification ofpeople and vehicles, intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection
Detection of movement in a basic event, detection of video tampering, exception (illegal login)
Alarm Linkage Message Push
Linkage Method N/A
Output notification Push message

INTERFACESNetwork interface 1 RJ45 10/100M auto-negotiating Ethernet port
Alarm N/A
Reset button not available
Power supply DC Power Port
Built-in storage N/A
Built-in microphone N/A
Built-in speaker N/A
Audio not available
GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Mounting accessories
Material Plastic
General features: dual stream, mirror, privacy masks, password reset via email, HTTP listening
Net weight 0.2 kg
Gross weight 0.35 kg
Power supply 12V DC ± 5%, max. 5 W, 5.5 mm coaxial power plug
PoE: 802.3af/at, class 0, max. 5.5 W
IP67 protection
Product dimensions (L x W x H) 73 × 174 × 71 mm
Certificates CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
