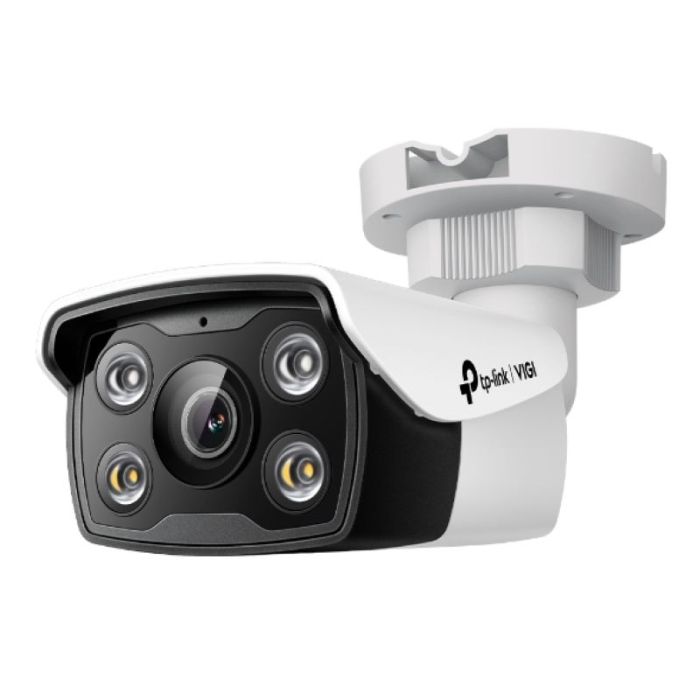

TP-LINK VIGI 5MP Full-Color Bullet Network Camera C350 6mm

Super high resolution with 5 million pixels: the camera is equipped with 5 million pixels – more than enough pixels to capture some more discreet details.
24-hour full color: Get 24-hour color details, even in dark conditions, with a large aperture lens, high-sensitivity sensor, and included auxiliary lights.
People and vehicle classification: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
Smart detection: Actively detects unusual events such as intrusion and line crossing, and sends you notifications immediately.
People and vehicle analytics: Quickly find the people and vehicles you are interested in using a range of attributes, allowing you to improve your search efficiency.
Active defense: Immediately alert potential intruders with sound and light when unusual events occur.
Two-way audio: With support for voice intercom, you can conduct two-way conversations while viewing the source from anywhere.
Waterproof IP67: Reliable IP67 for stable outdoor operation.
H.265+: Compresses video size without sacrificing video quality, easing network load and saving disk space.
Smart video enhancement: VIGI's professional technologies process videos to greatly improve their quality, which is crucial for your monitoring, including smart IR, True WDR, 3D DNR, and night vision.
Flexible management and storage: Take complete control of your security through four management methods: web user interface, NVR user interface, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as built-in storage with an SD card slot (up to 256 GB)

CAMERA
1/2.7" progressive scan CMOS image sensor
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination 0.005 lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
Day/night switching uniform/scheduled/automatic
LENS
Fixed focal length lens type
Focal length 6 mm
Aperture F1.6
FOV 6 mm:
Horizontal viewing angle: 90°, vertical viewing angle: 48°, diagonal viewing angle: 107°
Lens mount M12*P 0.5
DORI Distance 6 mm
Detection: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognition: 16 m (52 ft)
Identification: 8 m (26 ft)
ANGLE SETTING (MANUAL)
Pan range: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED Quantity: 2
Range: 30 m
Wavelength: 850 nm
White LED Quantity: 2
Range: 30 m
Illuminator on/off control Automatic/Scheduled/Always on/Always off
VIDEO
Max. resolution 2880 X 1620
Main stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Substream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
H.264 type Main profile/High profile
Supported main stream H.264+
H.265△ Main Profile
Supported H.265+ Main Stream△
Video bit rate Main stream: 256 Kbps to 6 Mbps
Substream: 64 Kbps to 512 Kbps

Imagesettings Mirror, brightness, contrast, saturation, sharpness, illumination, WDR, white balance, infrared light overexposure prevention, HLC, adjustable with client software
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range 120 dB
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes

Audiocommunication Two-way audio
Audio input Yes
Audio output Yes
Audio compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client application, VIGI security manager
Web browser Google Chrome® 57 and later
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check

ALARM AND EVENT MANAGEMENTSmart event people and vehicle classification, area intrusion detection, line crossing detection, People detection, Vehicle detection, Region entry detection, Region exit detection, Abandoned object detection, Object removal detection, Lying down detection, Scene change detection
Detection of movement in the base event, detection of video tampering, exception (illegal login), detection of scene change
Connection to alarm, video recording to memory card, sending messages, audible warning, flashing white light
Connection method N/A
Output notification Push message

DEEP LEARNING FUNCTIONPeople and vehicle analytics Search and filter people or vehicles of interest based on a variety of attributes, making event search faster and easier.
Multi-Target-Type Detection supports simultaneous detection and capture of human bodies and vehicles
Face capture is not available
Face comparison N/A

INTERFACESNetwork interface 1 RJ45 10/100M auto-adaptive Ethernet port, PoE
Alarm N/A
Reset button Yes
Power supply DC Power Port
Built-in storage, built-in memory card slot, MicroSD card support, up to 256 GB
Built-in microphone Yes; records everything happening within a 15 ft radius of the camera
Built-in speaker Yes
Audio not available

Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (non-condensing)
Package contents VIGI network camera
Quick start guide
Waterproof cable connectors
Mounting accessories
Material Plastic
Power supply 12V DC ± 5%, max. 9 W, 5.5 mm coaxial power plug
PoE: 802.3at, Class 0, max. 10.5 W
Protection IP67
Product dimensions (L x W x H) 78.42 × 186.88 × 71.55 mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
