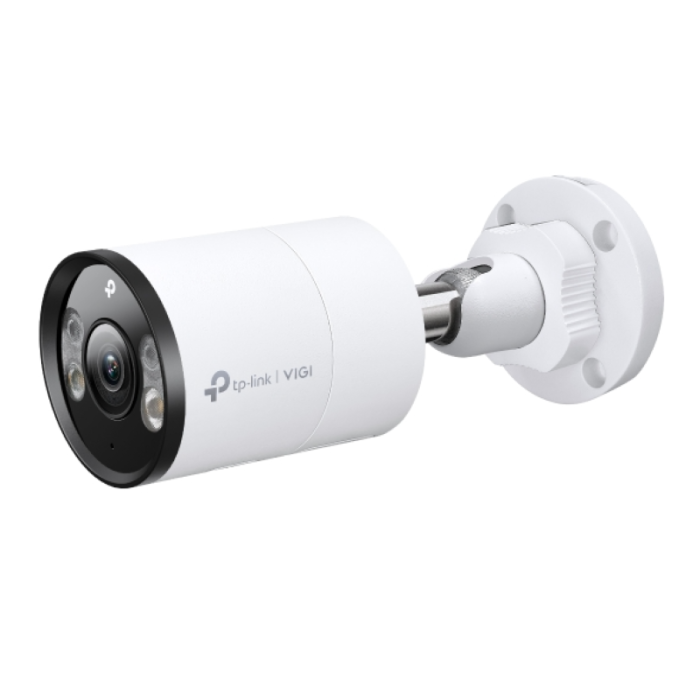

TP-LINK VIGI 5MP Outdoor Full-Color Bullet Network Camera C355 4mm

5MP super high resolution and 24-hour full color
People and vehicle analytics
Classification of people and vehicles
Smart detection
Smart video enhancement technology
Active defense and two-way audio
IP67 waterproof
H.265+ compression technology

CAMERA
1/2.7" CMOS image sensor with progressive scan
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination 0.005 lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
Day/night switching uniform/scheduled/automatic

LENS
Fixed focal length lens type
Focal length 2.8/4/6 mm
Aperture F1.6
FOV • 2.8 mm:
Horizontal angle of view: 111.4°, vertical angle of view: 58.8°, diagonal angle of view: 134°
• 4 mm:
Horizontal angle of view: 88°, vertical angle of view: 46°, diagonal angle of view: 105.4°
• 6 mm:
Horizontal viewing angle: 57.3°, vertical viewing angle: 31.3°, diagonal viewing angle: 67.2°
Lens attachment M12*P 0.5
DORI Distance • 2.8 mm
Detection: 64 m (210 ft)
Note: 27 m (89 ft)
Recognition: 13 m (43 ft)
Identification: 6 m (20 ft)
• 4 mm
Detection: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identification: 8 m (26 ft)
• 6 mm
Detection: 120 m (394 ft)
Note: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identification: 12 m (39 ft)
Angle adjustment (manual)
Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
IR LED • Quantity: 2
• Range: 30 m
• Wavelength: 850 nm
White LED • Quantity: 2
• Range: 30 m
Light switch control Automatic/Scheduled/Always on/Always off
VIDEO
Max. resolution 2880 X 1620
Main stream • Frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080,
1280x720
• Note:
If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Sub-frame • Frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
704x576, 640x480, 352x288, 320x240
• Note:
If image rotation is set to 90° or 270°, frame rate only supports up to 20 frames per second.
Bit rate control CBR, VBR
Video compression • Main stream: H.265+/H.265/H.264+/H.264
• Substream: H.265/H.264
H.264 High Profile
Supported main stream H.264+
H.265* Main Profile
Supported H.265+ main stream*
Video bit rate • Main stream: 256 Kbps to 6 Mbps
• Substream: 64 Kbps to 512 Kbps
Image settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevent excessive exposure to infrared light
• HLC adjustable via client software
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range 120 dB
Note: When people and vehicle analytics are enabled, only DWDR is supported.
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes

AUDIO
Audio communication Two-way audio
Audio input Yes
Audio output Yes
Audio compression Yes
Audio sampling rate 8KHz
Ambient noise filtering Yes
Audio bit rate 64 Kbps (G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (S/T/G profile)
Simultaneous live viewing 3 main streams and 3 sub-streams
VIGI client application, VIGI security manager, web user interface, VIGI VMS
Web browser • Google Chrome® 57 and later
• Firefox® 52 and later
• Safari® 11 and later
• Microsoft® Edge 91 and later
Cloud Yes
Security Password protection, HTTPS encryption, IP address filter, Authenticity check

ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line crossing detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Detecting loitering
• Detection of people
• Detection of vehicles
• Abnormal sound detection
• Scene change detection
Basic event • Motion detection (enhanced with people and vehicle classification for more accurate alerts)
• Video tampering detection
• Exception (illegal login)
Alarm link • Video recording to memory card
• Push notifications
• Audible alert
• Flashing white light
Connection method N/A
Output notification Push notification
Deep learning function
People and vehicle analytics Search and filter people or vehicles of interest based on a variety of attributes, making post-event searches faster and easier.

INTERFACES
Network interface 1 RJ45 10/100M auto-negotiating Ethernet port, PoE
Alarm N/A
Reset button Yes
Power supply DC Power Port
Built-in storage, built-in memory card slot, MicroSD card support, up to 512 GB**
Built-in microphone Yes; records everything that happens within a 15 ft radius of the camera
Built-in speaker Yes
Audio not available

GENERAL
Operating temperature -30–60 °C
Storage temperature -40–60 °C
Operating humidity 95% or less (non-condensing)
Storage humidity 95% or less (no condensation)
Package contents • VIGI network camera
• Quick start guide
• Waterproof cable connectors
• Mounting accessories
Material Metal
Net weight 0.525 kg
Power • 12V DC ± 5%, max. 9.7 W, 5.5 mm coaxial power plug
• PoE: 802.3af/at, Class 0, max. 10.7 W
IP67 protection
Product dimensions (L x W x H) 74 × 184 × 74 mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
