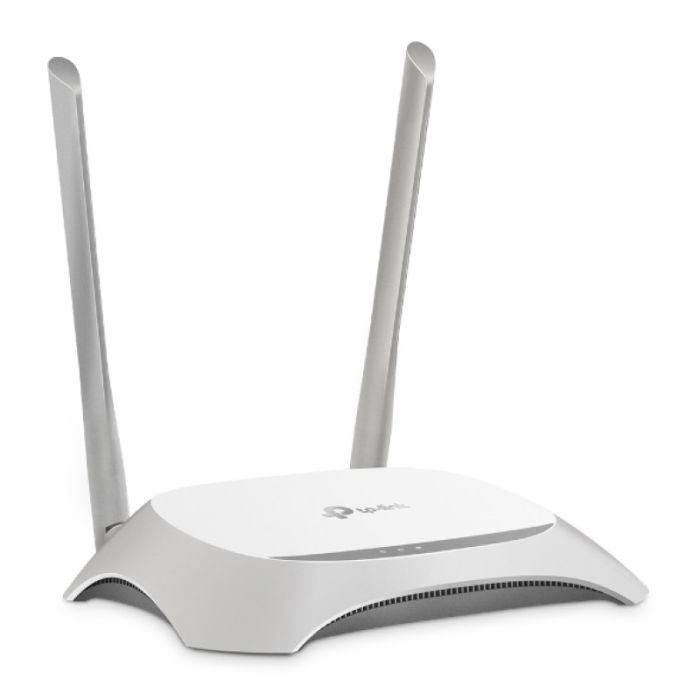

TP-LINK WR840N 300Mbps Wireless Router

The 300 Mbps wireless transfer speed is ideal for both bandwidth-sensitive tasks and basic work
Supports 4 modes: router, range extender, access point, and WISP mode
Parental controls manage when and how connected devices can access the Internet
IPTV supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
Compatible with IPv6 (Internet Protocol version 6)
Guest network provides separate access for guests while protecting your home network

WIRELESS
Wi-Fi 4 standards
IEEE 802.11n/b/g 2.4 GHz
WiFi speeds N300
2.4 GHz: 300 Mbps (802.11n)
2-bedroom cottages WiFi Range
2× fixed antennas
Inherited WiFi performance
Operating modes Router mode
Access point mode
Range extension mode
WISP mode
SECURITY
Network security SPI Firewall
Access control
IP & MAC binding
Application Layer Gateway
Guest network 1× 2.4 GHz guest network
WiFi encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor Single-core CPU
Ethernet ports 1× 10/100 Mbps WAN port
4 × 10/100 Mbps LAN ports
Buttons Reset button
Power 9 V ⎓ 0.6 A
SOFTWARE
Protocols IPv4
IPv6
Parental control URL filtering
Time controls
WAN types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service (QoS) based on device
NAT forwarding Port forwarding
Port triggering
DMZ
UPnP
IPTV IGMP proxy
IGMP snooping
DHCP address reservation
DHCP client list
Server
DDNS NO-IP
Comex
DynDNS
Tether management application
Website
Check out the web emulator>
OTHER
System requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or another browser that supports JavaScript
Cable or DSL modem (if necessary)
Subscription to an Internet service provider (for Internet access)
Certificates FCC, CE, RoHS
Operating temperature: 0℃~40℃ (32℉ ~104℉)
Storage temperature: -40℃~70℃ (-40℉ ~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing

TEST DATAWiFi transmission power CE:
<20 dBm (2.4 GHz)
FCC:
<30 dBm
WiFi reception sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% NA
1M: -90dBm@8% NA
PHYSICAL
Dimensions (W × D × H) 7.2 × 5.0 × 1.4 in
(182 × 128 × 35 mm)
Package Contents TL-WR840N Wi-Fi Router
Power adapter
RJ45 Ethernet cable
Quick installation guide
